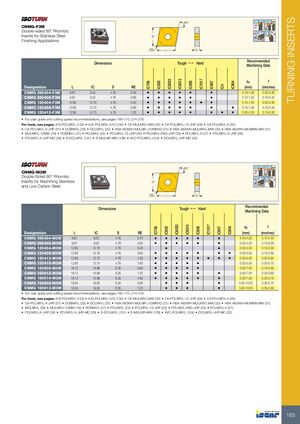

TURNING INSERTS 80° 95º CNMG-F3M 75º 95º Double-sided 80° Rhombic 75° Inserts for Stainless Steel IC 95º Finishing Applications RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC1017 IC706 IC830 IC806 IC807 IC804 IC4 Designation L IC S RE (mm) (mm/rev) CNMG 090404-F3M 9.67 9.52 4.76 0.40 • • • • • • 0.10-1.50 0.05-0.30 CNMG 090408-F3M 9.67 9.52 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.40 CNMG 120404-F3M 12.90 12.70 4.76 0.40 • • • • • • • 0.10-1.50 0.05-0.30 CNMG 120408-F3M 12.90 12.70 4.76 0.80 • • • • • • • 0.10-1.50 0.10-0.40 CNMG 120412-F3M 12.90 12.70 4.76 1.20 • • • • • • • • 0.20-2.00 0.15-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-PAD-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • AVC-PCLNR/L (124) • DCLNR/L-JHP-MC (32) 80° 95º CNMG-M3M 75º 95º Double-Sided 80° Rhombic 75° Inserts for Machining Stainless IC 95º and Low Carbon Steel RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC1017 IC706 IC830 IC806 IC807 IC804 Designation L IC S RE (mm) (mm/rev) CNMG 090404-M3M 9.67 9.52 4.76 0.40 • • • • • • 0.40-4.00 0.12-0.40 CNMG 090408-M3M 9.67 9.52 4.76 0.80 • • • • • • 0.50-4.50 0.15-0.50 CNMG 120404-M3M 12.90 12.70 4.76 0.40 • • 0.50-5.00 0.15-0.50 CNMG 120408-M3M 12.90 12.70 4.76 0.80 • • • • • • • 0.50-5.00 0.15-0.50 CNMG 120412-M3M 12.90 12.70 4.76 1.20 • • • • • • • • 0.50-5.00 0.20-0.60 CNMG 120416-M3M 12.90 12.70 4.76 1.60 • • • • • 0.50-5.00 0.25-0.70 CNMG 160608-M3M 16.12 15.88 6.35 0.80 • • • • • 0.50-7.00 0.15-0.50 CNMG 160612-M3M 16.12 15.88 6.35 1.20 • • • • • • 0.50-7.00 0.20-0.60 CNMG 160616-M3M 16.12 15.88 6.35 1.60 • • • • • • 0.50-7.00 0.25-0.70 CNMG 190608-M3M 19.34 19.05 6.35 0.80 • • • • 3.00-10.00 0.30-0.70 CNMG 190612-M3M 19.34 19.05 6.35 1.20 • • • • 3.00-10.00 0.35-0.80 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MCLNR/L (26) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-PAD-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • AVC-PCLNR/L (124) • DCLNR/L-JHP-MC (32) 185
