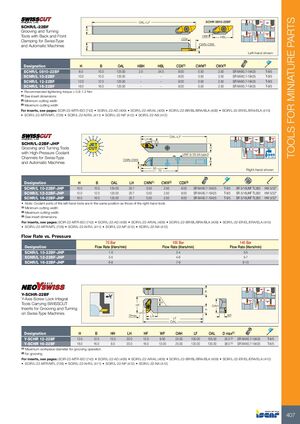

TOOLS FOR MINIATURE PARTS OAL=LF SCHR 0810-22BF SCHR/L-22BF Grooving and Turning H Tools with Back and Front HBH HBL CDX Clamping for Swiss-Type CWN-CWX and Automatic Machines B Left-hand shown Designation H B OAL HBH HBL CDX(1) CWN(2) CWX(3) SCHR/L 0810-22BF 8.0 10.0 125.00 2.0 24.0 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5 SCHR/L 10-22BF 10.0 10.0 125.00 - - 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5 SCHR/L 12-22BF 12.0 12.0 125.00 - - 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5 SCHR/L 16-22BF 16.0 16.0 125.00 - - 8.00 0.50 2.50 SR M4X0.7-19425 T-8/5 • Recommended tightening torque = 0.8-1.2 Nm (1) See insert dimensions (2) Minimum cutting width (3) Maximum cutting width For inserts, see pages: SCIR-22-MTR-ISO (742) • SCIR/L-22-AD (409) • SCIR/L-22-AR/AL (409) • SCIR/L-22-BR/BL/BRA/BLA (409) • SCIR/L-22-ER/EL/ERA/ELA (410) • SCIR/L-22-MTR/MTL (726) • SCIR/L-22-N/R/L (411) • SCIR/L-22-NP (412) • SCIR/L-22-NX (412) OAL=LF LH 5.5 SCHR/L-22BF-JHP Grooving and Turning Tools H with High-Pressure Coolant UNF 5/16-24 typx3 Channels for Swiss-Type CWN-CWX Bar Max and Automatic Machines B 50 Right-hand shown 70 Designation H B OAL LH CWN(1) CWX(2) CDX(3) SCHR/L 10-22BF-JHP 10.0 10.0 125.00 20.7 0.50 2.50 8.00 SR M4X0.7-19425 T-8/5 SR 5/16UNF TL360 HW 5/32" SCHR/L 12-22BF-JHP 12.0 12.0 125.00 20.7 0.50 2.50 8.00 SR M4X0.7-19425 T-8/5 SR 5/16UNF TL360 HW 5/32" SCHR/L 16-22BF-JHP 16.0 16.0 125.00 20.7 0.50 2.50 8.00 SR M4X0.7-19425 T-8/5 SR 5/16UNF TL360 HW 5/32" • Note: Coolant ports of the left-hand tools are in the same position as those of the right-hand tools (1) Minimum cutting width (2) Maximum cutting width (3) See insert dimensions For inserts, see pages: SCIR-22-MTR-ISO (742) • SCIR/L-22-AD (409) • SCIR/L-22-AR/AL (409) • SCIR/L-22-BR/BL/BRA/BLA (409) • SCIR/L-22-ER/EL/ERA/ELA (410) • SCIR/L-22-MTR/MTL (726) • SCIR/L-22-N/R/L (411) • SCIR/L-22-NP (412) • SCIR/L-22-NX (412) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) SCHR/L 10-22BF-JHP 1-3 2-4 3-5 SCHR/L 12-22BF-JHP 3-5 4-6 5-7 SCHR/L 16-22BF-JHP 6-8 7-9 8-10 B Y-SCHR-22BF Y-Axis Screw Lock Integral Tools Carrying SWISSCUT HH HF OAH Inserts for Grooving and Turning H on Swiss-Type Machines Dmax WF LH LF OAL Designation H B HH LH HF WF OAH LF OAL D max(1) Y-SCHR 12-22BF 12.0 12.0 13.0 20.0 12.0 9.00 25.00 100.00 105.50 25.0 (2) SR M4X0.7-19425 T-8/5 Y-SCHR 16-22BF 16.0 16.0 9.0 20.0 16.0 13.00 25.00 125.00 130.50 38.0 (2) SR M4X0.7-19425 T-8/5 (1) Maximum workpiece diameter for grooving operation (2) for grooving For inserts, see pages: SCIR-22-MTR-ISO (742) • SCIR/L-22-AD (409) • SCIR/L-22-AR/AL (409) • SCIR/L-22-BR/BL/BRA/BLA (409) • SCIR/L-22-ER/EL/ERA/ELA (410) • SCIR/L-22-MTR/MTL (726) • SCIR/L-22-N/R/L (411) • SCIR/L-22-NP (412) • SCIR/L-22-NX (412) 407
