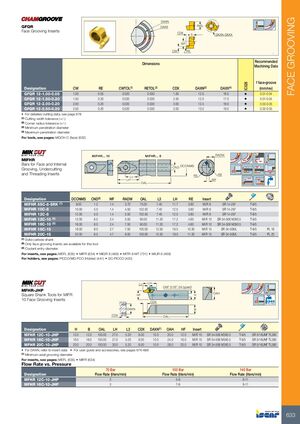

Токарные инструменты Iscar (часть 1) 2026 - страница 635

FACE GROOVING DAXN GFQR DAXX INSL Face Grooving Inserts CDX 5 DAXN-DAXX WF CW RE . Recommended Dimensions Machining Data f face-groove IC528 Designation CW RE CWTOL(1) RETOL(2) CDX DAXN(3) DAXX(4) (mm/rev) GFQR 12-1.00-0.05 1.00 0.05 0.020 0.030 1.50 12.0 16.0 • 0.01-0.04 GFQR 12-1.50-0.20 1.50 0.20 0.020 0.030 2.50 12.0 17.0 • 0.01-0.04 GFQR 12-2.00-0.20 2.00 0.20 0.020 0.030 3.00 12.4 18.0 • 0.02-0.05 GFQR 12-2.50-0.20 2.50 0.20 0.020 0.030 3.00 13.0 19.0 • 0.02-0.05 • For detailed cutting data, see page 678 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum penetration diameter (4) Maximum penetration diameter For tools, see pages: MGCH-C (face) (632) MIFHR... 10 MIFHR... 8 RADW MIFHR Bars for Face and Internal CND DCONMS Grooving, Undercutting and Threading Inserts RE RE L3 LH WF OAL Designation DCONMS CND(3) WF RADW OAL L3 LH RE Insert MIFHR 8SC-8-SRK (1) 8.00 1.2 1.4 3.70 75.00 7.40 11.7 3.80 MI.R 8 SR 14-297 T-8/5 MIFHR 10C-8 10.00 5.0 1.4 4.50 102.50 7.40 12.5 3.80 MI.R 8 SR 14-297 T-8/5 MIFHR 12C-8 12.00 5.0 1.4 5.50 102.50 7.40 12.5 3.80 MI.R 8 SR 14-297 T-8/5 MIFHR 12C-10 (2) 12.00 6.0 2.4 5.50 90.00 11.20 17.2 4.60 MI.R 10 SR 34-506 M3X0.5 T-9/5 MIFHR 16C-10 (2) 16.00 6.0 2.4 7.50 90.00 11.20 17.2 4.60 MI.R 10 SR 34-506 M3X0.5 T-9/5 MIFHR 16C-15 16.00 8.0 2.7 7.50 100.00 12.50 19.0 10.30 MI.R 15 SR 34-506/L T-9/5 PL 16 MIFHR 20C-15 20.00 8.5 4.7 9.00 100.00 12.50 19.0 11.30 MI.R 15 SR 34-506/L T-9/5 PL 20 (1) Solid carbide shank (2) Only face grooving inserts are available for this tool (3) Coolant entry diameter For inserts, see pages: MEFL (635) • MIFR (634) • MIGR 8 (469) • MITR 8-MT (731) • MIUR 8 (469) For holders, see pages: PICCO/MG PCO (Holder) (441) • SC-PICCO (420) L3 LH UNF 5/16”-24 typex3 MFHR-JHP Square Shank Tools for MIFR HF OAH H 10 Face Grooving Inserts CDX Bar Max DAXN B CDX OAL Designation H B OAL LH L3 CDX DAXN(1) OAH HF Insert MFHR 12C-10-JHP 12.0 12.0 100.00 27.0 5.20 9.00 10.0 20.0 12.0 MI.R 10 SR 34-506 M3X0.5 T-9/5 SR 5/16UNF TL360 MFHR 16C-10-JHP 16.0 16.0 100.00 27.0 5.20 9.00 10.0 24.0 16.0 MI.R 10 SR 34-506 M3X0.5 T-9/5 SR 5/16UNF TL360 MFHR 20C-10-JHP 20.0 20.0 100.00 30.0 5.20 9.00 10.0 28.0 20.0 MI.R 10 SR 34-506 M3X0.5 T-9/5 SR 5/16UNF TL360 • For DAXN, refer to insert data • For user guide and accessories, see pages 676-688 (1) Minimum axial grooving diameter For inserts, see pages: MEFL (635) • MIFR (634) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) MFHR 12C-10-JHP 3 5-9 9-11 MFHR 16C-10-JHP 3 7-9 9-11 633
