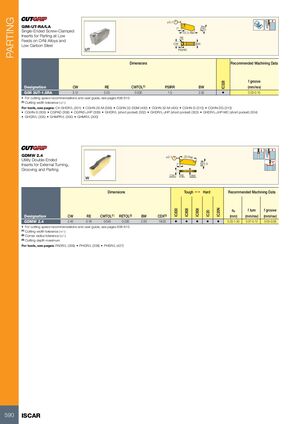

PARTING ±0.1 GIM-UT-RA/LA 7° 5 Single-Ended Screw-Clamped 15.3 Ref. Inserts for Parting at Low RE Feeds on CrNi Alloys and CW BW Low Carbon Steel PSIRR Dimensions Recommended Machining Data f groove IC328 Designation CW RE CWTOL(1) PSIRR BW (mm/rev) GIM 3UT-1.5RA 3.12 0.25 0.030 1.5 2.50 • 0.03-0.10 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) For tools, see pages: C#-GHDR/L (301) • CGHN 26-M (399) • CGHN 32-DGM (400) • CGHN 32-M (400) • CGHN-D (310) • CGHN-DG (310) • CGHN-S (309) • CGPAD (308) • CGPAD-JHP (309) • GHDR/L (short pocket) (302) • GHDR/L-JHP (short pocket) (303) • GHDR/L-JHP-MC (short pocket) (304) • GHGR/L (305) • GHMPR/L (300) • GHMR/L (300) GDMW 2.4 ±0.1 20 Ref. Utility Double-Ended Inserts for External Turning, 7˚ 5.5 Grooving and Parting CW RE BW Dimensions Tough 1 Hard Recommended Machining Data IC20N ap f turn f groove IC830 IC808 IC908 IC20 Designation CW RE CWTOL(1) RETOL(2) BW CDX(3) (mm) (mm/rev) (mm/rev) GDMW 2.4 2.40 0.18 0.040 0.030 2.00 18.00 • • • • • 0.25-1.50 0.07-0.12 0.05-0.08 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: PADR/L (338) • PHGR/L (338) • PHSR/L (427) 590 ISCAR
