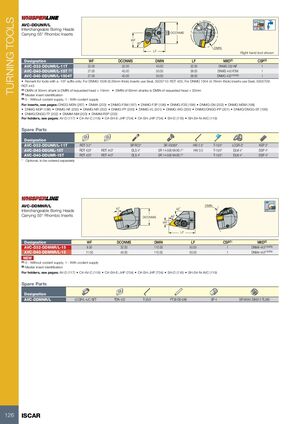

TURNING TOOLS 93º-95º AVC-DDUNR/L Interchangeable Boring Heads 30º MAX DCONMS Carrying 55° Rhombic Inserts WF 93° DMIN LF Right hand tool shown Designation WF DCONMS DMIN LF MIID(2) CSP(3) AVC-D32-DDUNR/L-11T 22.00 32.00 40.00 32.00 DNMG 332-NF 1 AVC-D40-DDUNR/L-15T (1) 27.00 40.00 50.00 38.00 DNMG 442-F3M 1 AVC-D40-DDUNR/L-1504T 27.00 40.00 50.00 38.00 DNMG 432(150408) 1 • Remark for tools with a -15T suffix only: For DNMG 1506 (6.35mm thick) inserts use Seat, 5505710: RDT 433, For DNMG 1504 (4.76mm thick) inserts use Seat, 5505709: RDT 443 (1) DMIN of 50mm shank is DMIN of requested head + 10mm • DMIN of 60mm shanks is DMIN of requested head + 20mm (2) Master insert identification (3) 0 - Without coolant supply, 1 - With coolant supply For inserts, see pages: DNGG-M3N (267) • DNMA (203) • DNMG-F3M (197) • DNMG-F3P (196) • DNMG-F3S (198) • DNMG-GN (202) • DNMG-M3M (198) • DNMG-M3P (196) • DNMG-NF (200) • DNMG-NR (202) • DNMG-PF (200) • DNMG-VL (201) • DNMG-WG (200) • DNMG/DNGG-PP (201) • DNMG/DNGG-SF (199) • DNMG/DNGG-TF (202) • DNMM-NM (203) • DNMM-R3P (203) For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-D32-DDUNR/L-11T RDT 3-2* SR RC3* SR 40085I* HW 2.5* T-15/5* LCGR-3* KSP 3* AVC-D40-DDUNL-15T RDT 433* RDT 443* DLS 4* SR 14-506 M4X0.7* HW 3.0 T-15/5* DLM 4* DSP 4* AVC-D40-DDUNR-15T RDT 433* RDT 443* DLS 4* SR 14-506 M4X0.7* T-15/5* DLM 4* DSP 4* * Optional, to be ordered separately 48º AVC-DDMNR/L DMIN 10˚ 42˚ Interchangeable Boring Heads 77º Carrying 55° Rhombic Inserts DCONMS 48˚ WF LF Designation WF DCONMS DMIN LF CSP(1) MIID(2) AVC-D32-DDMNR/L-15 8.50 32.00 110.00 50.00 1 DNM# 442(150608) AVC-D40-DDMNR/L-15 11.00 40.00 110.00 50.00 1 DNM# 442(150608) NEW (1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification For holders, see pages: AV-D (117) • C#-AV-C (118) • C#-SH-E-JHP (704) • C#-SH-JHP (704) • SH-D (116) • SH-S#-N-AVC (119) Spare Parts Designation AVC-DDMNR/L LCGR/L-4JC SET TDN 422 T-20/3 FT39 D6-5X8 SP 4 SR M4X4 DIN913 TL360 126 ISCAR
