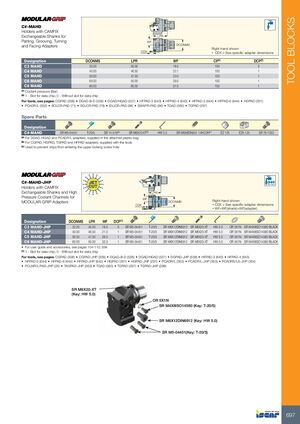

TOOL BLOCKS C#-MAHD Holders with CAMFIX Exchangeable Shanks for LPR Parting, Grooving, Turning WF and Facing Adapters DCONMS Right-hand shown CDX • CDX = See specific adapter dimensions Designation DCONMS LPR WF CP(1) DCP(2) C3 MAHD 32.00 50.00 18.5 100 0 C4 MAHD 40.00 46.50 22.1 100 1 C5 MAHD 50.00 47.00 23.0 100 1 C6 MAHD 63.00 50.00 29.0 100 1 C8 MAHD 80.00 60.00 37.5 100 1 (1) Coolant pressure (Bar) (2) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) Spare Parts Designation C#-MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole C#-MAHD-JHP Bar Max Holders with CAMFIX Exchangeable Shanks and High LPR Pressure Coolant Channels for WF MODULAR-GRIP Adapters DCONMS Right-hand shown CDX • CDX = See specific adapter dimensions • WF=WF(shank)+WF(adapter) Designation DCONMS LPR WF DCP(1) C3 MAHD-JHP 32.00 45.00 18.5 0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C4 MAHD-JHP 40.00 46.50 21.0 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C5 MAHD-JHP 50.00 47.00 26.0 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C6 MAHD-JHP 63.00 50.00 32.5 1 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK • For user guide and accessories, see pages 104-110, 694 (1) 1 - Slot for data chip, 0 - Without slot for data chip For tools, see pages: CGPAD (308) • CGPAD-JHP (309) • DGAD-B-D (538) • DGAD/HGAD (537) • DGPAD-JHP (538) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • HGPAD (291) • HGPAD-JHP (291) • PCADR/L (353) • PCADR/L-JHP (353) • PCADRS/LS-JHP (354) • PCLNR/L-PAD-JHP (25) • TAGPAD-JHP (562) • TGAD (560) • TGPAD (297) • TGPAD-JHP (298) SR M6X20-XT (Key: HW 5.0) OR 5X1N SR M4X8ISO14580 (Key: T-20/5) SR M6X12DIN6912 (Key: HW 5.0) SR M5-04451(Key: T-20/5) 697
