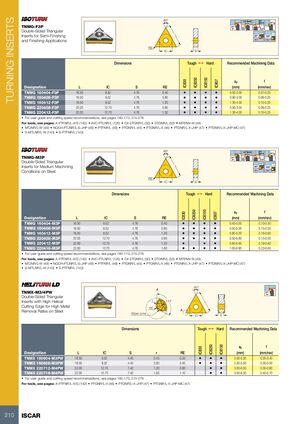

TURNING INSERTS 60° 22°MAX 55° MAX 91º TNMG-F3P 91º 93 º 60º Double-Sided Triangular Inserts for Semi-Finishing L 91º 95º and Finishing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC8150 ap f IC830 IC807 Designation L IC S RE (mm) (mm/rev) TNMG 160404-F3P 16.50 9.52 4.76 0.40 • • • • 0.50-2.00 0.07-0.25 TNMG 160408-F3P 16.50 9.52 4.76 0.80 • • • • 0.90-3.00 0.08-0.25 TNMG 160412-F3P 16.50 9.52 4.76 1.20 • • • • 1.30-4.00 0.10-0.25 TNMG 220408-F3P 22.00 12.70 4.76 0.80 • • • • 0.90-3.00 0.08-0.25 TNMG 220412-F3P 22.00 12.70 4.76 1.20 • • • • 1.30-4.00 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • C#-DTGNR/L (50) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 60° 22°MAX 55° MAX 91º TNMG-M3P 91º 93 º 60º Double-Sided Triangular Inserts for Medium Machining L 91º 95º Conditions on Steel RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 IC807 Designation L IC S RE (mm) (mm/rev) TNMG 160404-M3P 16.50 9.52 4.76 0.40 • • • • 0.40-5.00 0.10-0.30 TNMG 160408-M3P 16.50 9.52 4.76 0.80 • • • • 0.50-5.00 0.15-0.50 TNMG 160412-M3P 16.50 9.52 4.76 1.20 • • • • 0.80-5.00 0.18-0.60 TNMG 220408-M3P 22.00 12.70 4.76 0.80 • • • • 0.50-6.60 0.15-0.50 TNMG 220412-M3P 22.00 12.70 4.76 1.20 • • • 0.80-6.60 0.18-0.60 TNMG 220416-M3P 22.00 12.70 4.76 1.60 • • • • 1.00-6.60 0.23-0.65 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • AVC-PTLNR/L (125) • C#-DTGNR/L (50) • DTGNR/L (50) • MTENN-W (49) • MTJNR/L-W (49) • NQCH-PTJNR/L-S-JHP (48) • PTFNR/L (48) • PTGNR/L (45) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) • S-MTLNR/L-W (143) • S-PTFNR/L (143) 60° A TNMX-M3/4PW 91º Double-Sided Triangular Inserts with High Helical r 113˚ L Cutting Edge for High Metal RE Removal Rates on Steel A Wiper zone IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 Designation L IC S r RE (mm) (mm/rev) TNMX 160604-M3PW 16.50 9.52 4.40 0.40 0.20 • • • 2.00-5.00 0.25-0.40 TNMX 160608-M3PW 16.50 9.52 4.40 0.80 0.40 • • • 2.50-5.50 0.30-0.50 TNMX 220712-M4PW 22.00 12.70 7.40 1.20 0.60 • • 3.00-6.00 0.35-0.60 TNMX 220716-M4PW 22.00 12.70 7.40 1.60 1.10 • • 3.50-6.50 0.40-0.70 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PTFNR/L-X/G (142) • PTGNR/L-X (46) • PTGNR/L-X-JHP (47) • PTGNR/L-X-JHP-MC (47) 210 ISCAR
