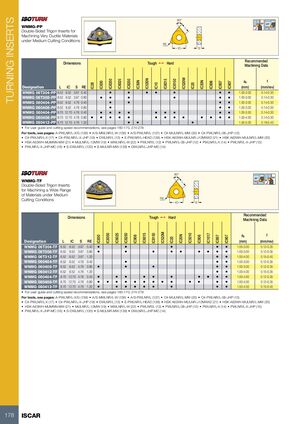

TURNING INSERTS 80° 95° 95º WNMG-PP L 95° Double-Sided Trigon Inserts for Machining Very Ductile Materials under Medium Cutting Conditions RE IC S Recommended Dimensions Tough 1 Hard Machining Data IC520M IC530N ap f IC8350 IC6025 IC8250 IC6015 IC8150 IC30N IC20N IC830 IC806 IC807 IC907 IC28 IC10 IC20 Designation L IC S RE (mm) (mm/rev) WNMG 06T304-PP 6.52 9.52 3.97 0.40 • • • • • • • 1.00-3.00 0.14-0.30 WNMG 06T308-PP 6.52 9.52 3.97 0.80 • • • • • • 1.00-3.00 0.14-0.30 WNMG 060404-PP 6.52 9.52 4.76 0.40 • • • • 1.00-3.00 0.14-0.30 WNMG 060408-PP 6.52 9.52 4.76 0.80 • • • 1.00-3.00 0.14-0.30 WNMG 080404-PP 8.70 12.70 4.76 0.40 • • • • • • • • • 1.00-3.50 0.14-0.30 WNMG 080408-PP 8.70 12.70 4.76 0.80 • • • • • • • • • • • • • 1.00-4.00 0.14-0.30 WNMG 080412-PP 8.70 12.70 4.76 1.20 • • • 1.50-5.00 0.18-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 80° 95º 95° WNMG-TF L 95° Double-Sided Trigon Inserts for Machining a Wide Range of Materials under Medium RE Cutting Conditions IC S Recommended Dimensions Tough 1 Hard Machining Data IC520M ap f IC8350 IC6025 IC8250 IC6015 IC8150 IC5010 IC1017 IC20N IC830 IC908 IC806 IC807 IC907 IC20 Designation L IC S RE (mm) (mm/rev) WNMG 06T304-TF 6.52 9.52 3.97 0.40 • • • • • 1.00-3.00 0.12-0.35 WNMG 06T308-TF 6.52 9.52 3.97 0.80 • • • • • • • • • 1.00-3.00 0.12-0.35 WNMG 06T312-TF 6.52 9.52 3.97 1.20 • • 1.00-4.00 0.15-0.40 WNMG 060404-TF 6.52 9.52 4.76 0.40 • • • 1.00-3.00 0.12-0.35 WNMG 060408-TF 6.52 9.52 4.76 0.80 • • • • • 1.00-3.00 0.12-0.35 WNMG 060412-TF 6.52 9.52 4.76 1.20 • • 1.00-4.00 0.15-0.35 WNMG 080404-TF 8.70 12.70 4.76 0.40 • • • • • • • • • • 1.00-4.00 0.12-0.35 WNMG 080408-TF 8.70 12.70 4.76 0.80 • • • • • • • • • • • • • 1.00-4.00 0.12-0.35 WNMG 080412-TF 8.70 12.70 4.76 1.20 • • • • • • • • • 1.50-4.50 0.15-0.40 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • E-PWLNR/L-HEAD (138) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 178 ISCAR
