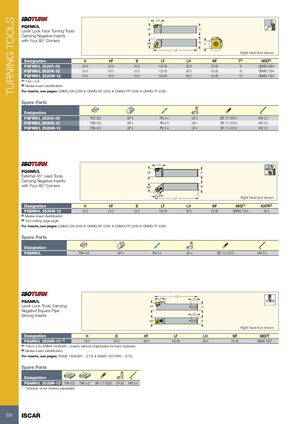

Токарные инструменты Iscar (часть 1) 2026 - страница 66

TURNING TOOLS LH PQFNR/L 95° HF H Lever Lock Face Turning Tools Carrying Negative Inserts with Four 80° Corners B WF T LF Right hand tool shown Designation H HF B LF LH WF T(1) MIID(2) PQFNR/L 2020K-09 20.0 20.0 20.0 125.00 26.0 25.00 8 QNMG 0904 PQFNR/L 2020K-12 20.0 20.0 20.0 125.00 26.0 25.00 10 QNMG 1204 PQFNR/L 2525M-12 25.0 25.0 25.0 150.00 26.0 25.00 10 QNMG 1204 (1) T for r 0.8 (2) Master insert identification For inserts, see pages: QNMG-GN (229) • QNMG-NF (228) • QNMG-PP (228) • QNMG-TF (228) Spare Parts Designation PQFNR/L 2020K-09 TXC 322 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 PQFNR/L 2020K-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 PQFNR/L 2525M-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 LH 45º 45º PQSNR/L HF H External 45° Lead Tools Carrying Negative Inserts with Four 80° Corners WF B KAPR Right hand tool shown LF Designation H HF B LF LH WF MIID(1) KAPR(2) PQSNR/L 2525M-12 25.0 25.0 25.0 150.00 30.0 32.00 QNMG 1204 45.0 (1) Master insert identification (2) Tool cutting edge angle For inserts, see pages: QNMG-GN (229) • QNMG-NF (228) • QNMG-PP (228) • QNMG-TF (228) Spare Parts Designation PQSNR/L TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 LF LH 25 PSANR/L Lever Lock Tools Carrying HF H Negative Square Pipe 25 Skiving Inserts WF B Right hand tool shown Designation H B HF LF LH WF MIID(2) PSANR/L 2525M-15 (1) 25.0 25.0 26.0 150.00 38.0 25.00 SNMX 1507 (1) TXN 5-2 for SNMX 150608R-.. inserts without chipbreaker for hard materials. (2) Master insert identification For inserts, see pages: SNMX 150608R-.. (273) • SNMX 150708R-.. (273) Spare Parts Designation PSANR/L 2525M-15 TXN 532 TXN 5-2* SR 117-2020 LR 5S HW 3.0 * Optional, to be ordered separately 64 ISCAR
