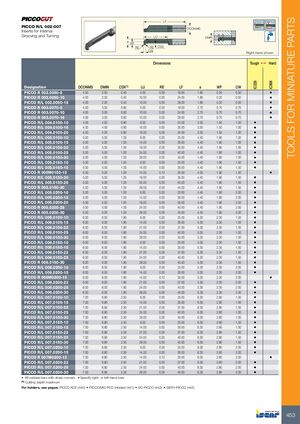

Токарные инструменты Iscar (часть 1) 2026 - страница 455

TOOLS FOR MINIATURE PARTS LF PICCO R/L 002-007 DCONMS Inserts for Internal Grooving and Turning LU DMIN a WF RE RE CDX CW Right-hand shown Dimensions Tough 1 Hard IC228 IC908 Designation DCONMS DMIN CDX(1) LU RE LF a WF CW PICCO R 002.0050-5 4.00 2.00 0.40 5.00 0.00 19.00 1.80 0.20 0.50 • PICCO R 002.0050-10 4.00 2.00 0.40 10.00 0.00 24.00 1.80 0.20 0.50 • PICCO R/L 002.0050-15 4.00 2.00 0.40 15.00 0.00 29.00 1.80 0.20 0.50 • PICCO R 003.0070-5 4.00 3.00 0.60 5.00 0.00 19.00 2.70 0.70 0.70 • PICCO R 003.0070-10 4.00 3.00 0.60 10.00 0.00 24.00 2.70 0.70 0.70 • PICCO R 003.0070-16 4.00 3.00 0.60 15.00 0.00 29.00 2.70 0.70 0.70 • PICCO R/L 004.0100-10 4.00 4.00 0.80 9.00 0.00 24.00 3.50 1.50 1.00 • PICCO R/L 004.0100-16 4.00 4.00 0.80 15.00 0.00 30.00 3.50 1.50 1.00 • PICCO R/L 004.0100-20 4.00 4.00 0.80 19.00 0.00 34.00 3.50 1.50 1.00 • PICCO R/L 005.0100-10 5.00 5.00 1.00 9.00 0.00 25.00 4.40 1.90 1.00 • PICCO R/L 005.0100-15 5.00 5.00 1.00 14.00 0.00 30.00 4.40 1.90 1.00 • PICCO R/L 005.0100-20 5.00 5.00 1.00 19.00 0.00 35.00 4.40 1.90 1.00 • PICCO R/L 005.0100-25 5.00 5.00 1.00 24.00 0.00 40.00 4.40 1.90 1.00 • PICCO R/L 005.0100-30 5.00 5.00 1.00 29.00 0.00 45.00 4.40 1.90 1.00 • PICCO R/L 005.0150-10 5.00 5.00 1.00 9.00 0.00 25.00 4.40 1.90 1.50 • PICCO R/L 005.0150-15 5.00 5.00 1.00 14.00 0.00 30.00 4.40 1.90 1.50 • PICCO R 005M0150-15 5.00 5.00 1.00 14.00 0.10 30.00 4.00 1.90 1.50 • PICCO R/L 005.0150-20 5.00 5.00 1.00 19.00 0.00 35.00 4.40 1.90 1.50 • PICCO R/L 005.0150-25 5.00 5.00 1.00 24.00 0.00 40.00 4.40 1.90 1.50 • PICCO R 005.0150-30 5.00 5.00 1.00 29.00 0.00 45.00 4.40 1.90 1.50 • PICCO R/L 005.0200-10 5.00 5.00 1.00 9.00 0.00 25.00 4.40 1.90 2.00 • PICCO R/L 005.0200-15 5.00 5.00 1.00 14.00 0.00 30.00 4.40 1.90 2.00 • PICCO R/L 005.0200-20 5.00 5.00 1.00 19.00 0.00 35.00 4.40 1.90 2.00 • PICCO R 005.0200-25 5.00 5.00 1.00 24.00 0.00 40.00 4.40 1.90 2.00 • PICCO R 005.0200-30 5.00 5.00 1.00 29.00 0.00 45.00 4.40 1.90 2.00 • PICCO R/L 006.0100-10 6.00 6.00 1.80 9.00 0.00 25.00 5.30 2.30 1.00 • PICCO R/L 006.0100-15 6.00 6.00 1.80 14.00 0.00 30.00 5.30 2.30 1.00 • PICCO R/L 006.0100-22 6.00 6.00 1.80 21.00 0.00 37.00 5.30 2.30 1.00 • PICCO R/L 006.0100-25 6.00 6.00 1.80 24.00 0.00 40.00 5.30 2.30 1.00 • PICCO R/L 006.0100-30 6.00 6.00 1.80 29.00 0.00 45.00 5.30 2.30 1.00 • PICCO R/L 006.0150-10 6.00 6.00 1.80 9.00 0.00 25.00 5.30 2.30 1.50 • PICCO R/L 006.0150-15 6.00 6.00 1.80 14.00 0.00 30.00 5.30 2.30 1.50 • PICCO R/L 006.0150-22 6.00 6.00 1.80 21.00 0.00 37.00 5.30 2.30 1.50 • PICCO R/L 006.0150-25 6.00 6.00 1.80 24.00 0.00 40.00 5.30 2.30 1.50 • PICCO R 006.0150-30 6.00 6.00 1.80 29.00 0.00 45.00 5.30 2.30 1.50 • PICCO R/L 006.0200-10 6.00 6.00 1.80 9.00 0.00 25.00 5.30 2.30 2.00 • PICCO R/L 006.0200-15 6.00 6.00 1.80 14.00 0.00 30.00 5.30 2.30 2.00 • PICCO R 006M0200-15 6.00 6.00 1.80 14.00 0.10 30.00 5.30 2.30 2.00 • PICCO R/L 006.0200-22 6.00 6.00 1.80 21.00 0.00 37.00 5.30 2.30 2.00 • PICCO R/L 006.0200-25 6.00 6.00 1.80 24.00 0.00 40.00 5.30 2.30 2.00 • PICCO R/L 006.0200-30 6.00 6.00 1.80 29.00 0.00 45.00 5.30 2.30 2.00 • PICCO R/L 007.0100-10 7.00 6.80 2.50 9.00 0.00 25.00 6.30 2.80 1.00 • PICCO R/L 007.0100-15 7.00 6.80 2.50 14.00 0.00 30.00 6.30 2.80 1.00 • PICCO R/L 007.0100-22 7.00 6.80 2.50 21.00 0.00 37.00 6.30 2.80 1.00 • PICCO R/L 007.0100-25 7.00 6.80 2.50 24.00 0.00 40.00 6.30 2.80 1.00 • PICCO R/L 007.0100-30 7.00 6.80 2.50 29.00 0.00 45.00 6.30 2.80 1.00 • PICCO R/L 007.0150-10 7.00 6.80 2.50 9.00 0.00 25.00 6.30 2.80 1.50 • PICCO R/L 007.0150-15 7.00 6.80 2.50 14.00 0.00 30.00 6.30 2.80 1.50 • PICCO R/L 007.0150-22 7.00 6.80 2.50 21.00 0.00 37.00 6.30 2.80 1.50 • PICCO R/L 007.0150-25 7.00 6.80 2.50 24.00 0.00 40.00 6.30 2.80 1.50 • PICCO R/L 007.0150-30 7.00 6.80 2.50 29.00 0.00 45.00 6.30 2.80 1.50 • PICCO R/L 007.0200-10 7.00 6.80 2.50 9.00 0.00 25.00 6.30 2.80 2.00 • PICCO R/L 007.0200-15 7.00 6.80 2.50 14.00 0.00 30.00 6.30 2.80 2.00 • PICCO R 007M0200-15 7.00 6.80 2.50 14.00 0.10 30.00 6.30 2.80 2.00 • PICCO R/L 007.0200-22 7.00 6.80 2.50 21.00 0.00 37.00 6.30 2.80 2.00 • PICCO R/L 007.0200-25 7.00 6.80 2.50 24.00 0.00 40.00 6.30 2.80 2.00 • PICCO R/L 007.0200-30 7.00 6.80 2.50 29.00 0.00 45.00 6.30 2.80 2.00 • • All carbide bars with sharp corners • Specify right- or left-hand bars (1) Cutting depth maximum For holders, see pages: PICCO ACE (440) • PICCO/MG PCO (Holder) (441) • SC-PICCO (442) • SBTH-PICCO (442) 453
