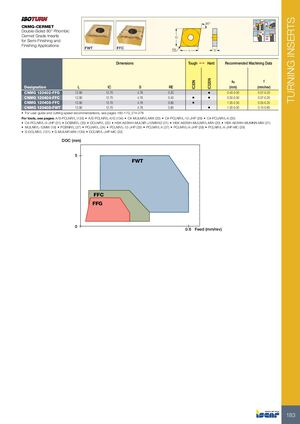

TURNING INSERTS 95º 80° CNMG-CERMET 95º 95º Double-Sided 80° Rhombic 75° Cermet Grade Inserts IC 75º for Semi-Finishing and Finishing Applications RE L S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC20N Designation L IC S RE (mm) (mm/rev) CNMG 120402-FFG 12.90 12.70 4.76 0.20 • 0.40-3.50 0.07-0.25 CNMG 120404-FFC 12.90 12.70 4.76 0.40 • • 0.50-3.50 0.07-0.25 CNMG 120408-FFC 12.90 12.70 4.76 0.80 • 1.00-2.50 0.05-0.25 CNMG 120408-FWT 12.90 12.70 4.76 0.80 • 1.00-5.00 0.15-0.60 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • DCLNR/L-JHP-MC (32) DOC (mm) 5 FWT FFC FFG 0 0.6 Feed (mm/rev) 183
