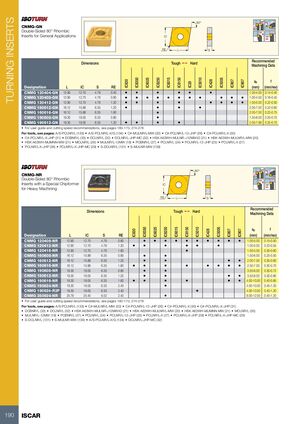

TURNING INSERTS 80° 95º CNMG-GN 95º 95º Double-Sided 80° Rhombic 75° Inserts for General Applications IC 75º RE L S Recommended Dimensions Tough 1 Hard Machining Data IC8350 IC6025 IC8250 IC6015 IC8150 IC5010 IC5005 ap f IC830 IC428 IC807 IC907 IC20 Designation L IC S RE (mm) (mm/rev) CNMG 120404-GN 12.90 12.70 4.76 0.40 • • • • • • 1.00-4.00 0.14-0.40 CNMG 120408-GN 12.90 12.70 4.76 0.80 • • • • • • • • • • • 1.00-4.50 0.16-0.45 CNMG 120412-GN 12.90 12.70 4.76 1.20 • • • • • • • • 1.50-5.00 0.22-0.50 CNMG 160612-GN 16.12 15.88 6.35 1.20 • • • • 2.00-7.00 0.22-0.60 CNMG 160616-GN 16.12 15.88 6.35 1.60 • 2.00-7.00 0.22-0.75 CNMG 190608-GN 19.30 19.05 6.35 0.80 • 1.50-8.00 0.20-0.70 CNMG 190612-GN 19.30 19.05 6.35 1.20 • • • • 2.00-7.98 0.25-0.70 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • DCLNR/L-JHP-MC (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MCLNR/L (26) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) 80° 95º CNMG-NR 95º 95º Double-Sided 80° Rhombic 75° Inserts with a Special Chipformer IC 75º for Heavy Machining RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC8350 IC6025 IC8250 IC6015 IC8150 IC5010 IC5005 IC830 IC428 IC807 IC907 Designation L IC S RE (mm) (mm/rev) CNMG 120408-NR 12.90 12.70 4.76 0.80 • • • • • • • • • • 1.00-5.00 0.15-0.50 CNMG 120412-NR 12.90 12.70 4.76 1.20 • • • • • • 1.00-5.00 0.23-0.55 CNMG 120416-NR 12.90 12.70 4.76 1.60 • 1.00-5.00 0.30-0.60 CNMG 160608-NR 16.12 15.88 6.35 0.80 • • 1.50-6.00 0.25-0.50 CNMG 160612-NR 16.12 15.88 6.35 1.20 • • • • 2.00-7.00 0.30-0.60 CNMG 160616-NR 16.12 15.88 6.35 1.60 • • • • • • • • 2.50-7.00 0.30-0.70 CNMG 190608-NR 19.30 19.05 6.35 0.80 • • 3.50-8.00 0.30-0.72 CNMG 190612-NR 19.30 19.05 6.35 1.20 • • • • 3.50-8.00 0.30-0.80 CNMG 190616-NR 19.30 19.05 6.35 1.60 • • • • • • 4.00-10.00 0.40-0.85 CNMG 190624-NR 19.30 19.05 6.35 2.40 • 4.00-10.00 0.40-1.20 CNMG 190624-R3P 19.30 19.05 6.35 2.40 • 4.00-10.00 0.40-1.20 CNMG 250924-NR 25.79 25.40 9.52 2.40 • 6.00-12.00 0.40-1.20 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MCLNR/L (26) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • A/S-PCLNR/L-X/G (134) • DCLNR/L-JHP-MC (32) 190 ISCAR
