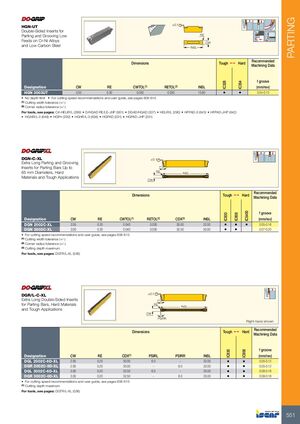

PARTING ±0.1 HGN-UT Double-Sided Inserts for Parting and Grooving Low RE Feeds on Cr-Ni Alloys CW and Low Carbon Steel INSL Recommended Dimensions Tough 1 Hard Machining Data f groove IC328 IC354 Designation CW RE CWTOL(1) RETOL(2) INSL (mm/rev) HGN 3003UT 3.00 0.30 0.050 0.030 15.80 • • 0.04-0.13 • No depth limit • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD/HGAD (537) • HELIR/L (290) • HFPAD-3 (643) • HFPAD-JHP (642) • HGAIR/L-3 (648) • HGFH (292) • HGHR/L-3 (638) • HGPAD (291) • HGPAD-JHP (291) DGN-C-XL ±0.1 Extra Long Parting and Grooving Inserts for Parting Bars Up to 7° 65 mm Diameters, Hard RE INSL Materials and Tough Applications CW Recommended Dimensions Tough 1 Hard Machining Data f groove IC5400 IC830 IC808 Designation CW RE CWTOL(1) RETOL(2) CDX(3) INSL (mm/rev) DGN 2002C-XL 2.05 0.20 0.040 0.030 30.00 32.00 • • • 0.05-0.16 DGN 3002C-XL 3.00 0.20 0.040 0.030 32.50 35.00 • • 0.07-0.20 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: DGTR/L-XL (536) ±0.1 DGR/L-C-XL Extra Long Double-Sided Inserts 7° for Parting Bars, Hard Materials RE INSL and Tough Applications CW PSIRR Right-hand shown Recommended Dimensions Tough 1 Hard Machining Data f groove IC830 IC808 Designation CW RE CDX(1) PSIRL PSIRR INSL (mm/rev) DGL 2002C-6D-XL 2.00 0.20 30.00 6.0 - 32.00 • • 0.05-0.12 DGR 2002C-6D-XL 2.00 0.20 30.00 - 6.0 32.00 • • 0.05-0.12 DGL 3002C-6D-XL 3.00 0.20 32.50 6.0 - 35.00 • • 0.08-0.18 DGR 3002C-6D-XL 3.00 0.20 32.50 - 6.0 35.00 • • 0.08-0.18 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting depth maximum For tools, see pages: DGTR/L-XL (536) 551
