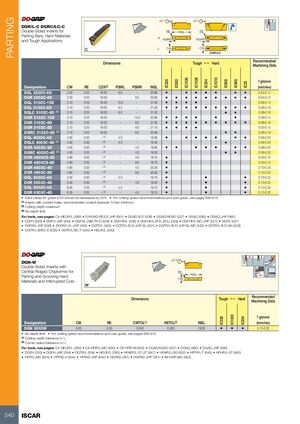

PARTING ±0.1 ±0.1 DGR/L-C DGRC/LC-C Double-Sided Inserts for RE INSL RE Parting Bars, Hard Materials R PSIRR and Tough Applications PSIRR L CW CW DGR/LC Recommended Dimensions Tough 1 Hard Machining Data IC1030 IC1028 IC1010 f groove IC328 IC830 IC354 IC808 IC908 IC20 Designation CW RE CDX(2) PSIRL PSIRR INSL (mm/rev) DGL 2202C-6D 2.20 0.20 18.00 6.0 - 20.80 • • • • • • • 0.04-0.12 DGR 2202C-6D 2.20 0.20 18.00 - 6.0 20.80 • • • • • • • • • 0.04-0.12 DGL 3102C-15D 3.10 0.20 18.00 15.0 - 21.00 • • • • 0.08-0.14 DGL 3102C-6D 3.10 0.20 18.00 6.0 - 21.00 • • • • • • • • • 0.08-0.18 DGLC 3102C-6D (1) 3.10 0.20 18.00 6.0 - 21.00 • • 0.08-0.18 DGR 3102C-15D 3.10 0.20 18.00 - 15.0 20.90 • • • • • • 0.08-0.14 DGR 3102C-6D 3.10 0.20 18.00 - 6.0 21.00 • • • • • • • • • 0.08-0.18 DGR 3102C-8D 3.10 0.20 18.00 - 8.0 21.10 • • • • 0.05-0.15 DGRC 3102C-6D (1) 3.10 0.20 18.00 - 6.0 20.90 • • 0.08-0.18 DGL 4003C-4D 4.00 0.30 - (3) 4.0 - 18.90 • • • • • • • 0.08-0.20 DGLC 4003C-4D (1) 4.00 0.30 - (3) 4.0 - 19.00 • 0.08-0.20 DGR 4003C-4D 4.00 0.30 - (3) - 4.0 18.80 • • • • • • • 0.08-0.20 DGRC 4003C-4D (1) 4.00 0.30 - (3) - 4.0 19.00 • • 0.08-0.20 DGR 4800CS-4D 4.80 0.02 - (3) - 4.0 19.70 • 0.05-0.15 DGR 4800CS-8D 4.80 0.02 - (3) - 8.0 19.70 • 0.05-0.15 DGR 4803C-4D 4.80 0.30 - (3) - 4.0 20.30 • 0.10-0.25 DGR 4803C-8D 4.80 0.30 - (3) - 8.0 20.30 • 0.10-0.20 DGL 5003C-4D 5.00 0.30 - (3) 4.0 - 19.10 • • • 0.10-0.25 DGR 5003C-4D 5.00 0.30 - (3) - 4.0 19.20 • • • 0.10-0.25 DGL 6303C-4D 6.35 0.35 - (3) 4.0 - 19.10 • • • 0.12-0.30 DGR 6303C-4D 6.35 0.35 - (3) - 4.0 19.10 • • • 0.12-0.30 • Feed values for grade IC20 should be decreased by 50% • For cutting speed recommendations and user guide, see pages 606-615 (1) Inserts with coolant holes, recommended coolant pressure 10 bar minimum (2) Cutting depth maximum (3) No depth limit For tools, see pages: C#-HELIR/L (289) • D/HGAD RE/LE-JHP (561) • DGAD-B-D (538) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGFHL-26B-TR-D (528) • DGFHR/L (526) • DGFHR/L-B-D..(R/L) (528) • DGFHR/L-BC-JHP (527) • DGFS (527) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • DGTR/L (534) • DGTR/L-B-D-JHP-SL (531) • DGTR/L-B-D-JHP-SL-MC (532) • DGTR/L-B-D-SH (529) • DGTR/L-B/BC-D (533) • DGTR/L-BC-T (535) • HELIR/L (290) ±0.1 DGN-W Double-Sided Inserts with Central Ridged Chipformer for RE INSL Parting and Grooving Hard CW Materials and Interrupted Cuts Recommended Dimensions Tough 1 Hard Machining Data f groove IC1030 IC328 IC354 Designation CW RE CWTOL(1) RETOL(2) INSL (mm/rev) DGN 5003W 5.00 0.30 0.040 0.030 19.00 • • • 0.12-0.33 • No depth limit • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: C#-HELIR/L (289) • C#-HFIR/L-MC (653) • CR HFIR-M (655) • DGAD/HGAD (537) • DGAQ (580) • DGAQ-JHP (580) • DGFH (293) • DGFH-JHP (294) • DGTR/L (534) • HELIR/L (290) • HFAER/L-5T, 6T (647) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHR/L-5T (640) • HFIR/L-MC (654) • HFPAD-5 (644) • HFPAD-JHP (642) • HGPAD (291) • HGPAD-JHP (291) • IM-HFIR-MC (653) 540 ISCAR
