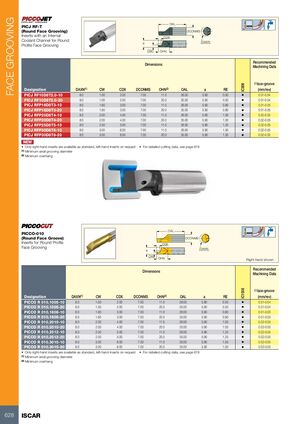

FACE GROOVING OAL PICJ RF-T (Round Face Grooving) DCONMS Inserts with an Internal CDX Coolant Channel for Round DAXN a Profile Face Grooving CW OHN Recommended Dimensions Machining Data f face-groove IC908 Designation DAXN(1) CW CDX DCONMS OHN(2) OAL a RE (mm/rev) PICJ RF10D8T2.0-10 8.0 1.00 2.00 7.00 11.0 26.00 5.90 0.50 • 0.01-0.04 PICJ RF10D8T2.0-20 8.0 1.00 2.00 7.00 20.0 35.00 5.90 0.50 • 0.01-0.04 PICJ RFP16D8T3-10 8.0 1.60 3.00 7.00 11.0 26.00 5.90 0.80 • 0.01-0.05 PICJ RFP16D8T3-20 8.0 1.60 3.00 7.00 20.0 35.00 5.90 0.80 • 0.01-0.05 PICJ RFP20D8T4-10 8.0 2.00 4.00 7.00 11.0 26.00 5.90 1.00 • 0.02-0.05 PICJ RFP20D8T4-20 8.0 2.00 4.00 7.00 20.0 35.00 5.90 1.00 • 0.02-0.05 PICJ RFP25D8T5-10 8.0 2.50 5.00 7.00 11.0 26.00 5.90 1.25 • 0.02-0.05 PICJ RFP30D8T6-10 8.0 3.00 6.00 7.00 11.0 26.00 5.90 1.50 • 0.02-0.05 PICJ RFP30D8T6-20 8.0 3.00 6.00 7.00 20.0 35.00 5.90 1.50 • 0.02-0.05 NEW • Only right-hand inserts are available as standard, left-hand inserts on request • For detailed cutting data, see page 678 (1) Minimum axial grooving diameter (2) Minimum overhang OAL PICCO-010 (Round Face Groove) DCONMS Inserts for Round Profile CDX Face Grooving DAXN a CW OHN Right-hand shown Recommended Dimensions Machining Data f face-groove IC1008 Designation DAXN(1) CW CDX DCONMS OHN(2) OAL a RE (mm/rev) PICCO R 010.1005-10 8.0 1.00 2.00 7.00 11.0 26.00 5.90 0.50 • 0.01-0.04 PICCO R 010.1005-20 8.0 1.00 2.00 7.00 20.0 35.00 5.90 0.50 • 0.01-0.04 PICCO R 010.1608-10 8.0 1.60 3.00 7.00 11.0 26.00 5.90 0.80 • 0.01-0.05 PICCO R 010.1608-20 8.0 1.60 3.00 7.00 20.0 35.00 5.90 0.80 • 0.01-0.05 PICCO R 010.2010-10 8.0 2.00 4.00 7.00 11.0 26.00 5.90 1.00 • 0.02-0.05 PICCO R 010.2010-20 8.0 2.00 4.00 7.00 20.0 35.00 5.90 1.00 • 0.02-0.05 PICCO R 010.2512-10 8.0 2.50 5.00 7.00 11.0 26.00 5.90 1.25 • 0.02-0.05 PICCO R 010.2512-20 8.0 2.50 5.00 7.00 20.0 35.00 5.90 1.25 • 0.02-0.05 PICCO R 010.3015-10 8.0 3.00 6.00 7.00 11.0 26.00 5.90 1.50 • 0.02-0.05 PICCO R 010.3015-20 8.0 3.00 6.00 7.00 20.0 35.00 5.90 1.50 • 0.02-0.05 • Only right-hand inserts are available as standard, left-hand inserts on request • For detailed cutting data, see page 678 (1) Minimum axial grooving diameter (2) Minimum overhang 628 ISCAR
