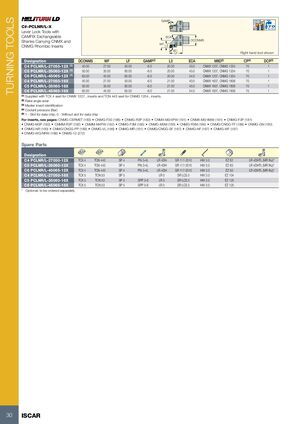

TURNING TOOLS GAMP 95º C#-PCLNR/L-X 95º 70 Bar Max Lever Lock Tools with CAMFIX Exchangeable ECA Shanks Carrying CNMX and DCONMS WF L3 CNMG Rhombic Inserts 95° LF Right hand tool shown Designation DCONMS WF LF GAMP(2) L3 ECA MIID(3) CP(4) DCP(5) C4 PCLNR/L-27050-12X (1) 40.00 27.00 50.00 -6.0 20.00 40.0 CNMX 1207, CNMG 1204 70 1 C5 PCLNR/L-35060-12X (1) 50.00 35.00 60.00 -6.0 20.00 45.0 CNMX 1207, CNMG 1204 70 1 C6 PCLNR/L-45065-12X (1) 63.00 45.00 65.00 -6.0 20.00 54.0 CNMX 1207, CNMG 1204 70 1 C4 PCLNR/L-27050-16X 40.00 27.00 50.00 -6.0 21.00 40.0 CNMX 1607, CNMG 1606 70 1 C5 PCLNR/L-35060-16X 50.00 35.00 60.00 -6.0 21.00 45.0 CNMX 1607, CNMG 1606 70 1 C6 PCLNR/L-45065-16X 63.00 45.00 65.00 -6.0 21.00 54.0 CNMX 1607, CNMG 1606 70 1 (1) Supplied with TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts. (2) Rake angle axial (3) Master insert identification (4) Coolant pressure (Bar) (5) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • CNMG-R3P (182) • CNMX-M3/4PW (191) • CNMX-M3/4MW (191) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG-R3M (186) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG-MR (191) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) Spare Parts Designation C4 PCLNR/L-27050-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 EZ 62 LR 4DHTL (MR INJ)* C5 PCLNR/L-35060-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 EZ 83 LR 4DHTL (MR INJ)* C6 PCLNR/L-45065-12X TCX 4 TCN 443 SP 4 PN 3-4L LR 4DH SR 117-2010 HW 3.0 EZ 83 LR 4DHTL (MR INJ)* C4 PCLNR/L-27050-16X TCX 5 TCN 53 SP 5 LR 5 SR LCS 5 HW 3.0 EZ 104 C5 PCLNR/L-35060-16X TCX 5 TCN 53 SP 5 SPP 5-6 LR 5 SR LCS 5 HW 3.0 EZ 125 C6 PCLNR/L-45065-16X TCX 5 TCN 53 SP 5 SPP 5-6 LR 5 SR LCS 5 HW 3.0 EZ 125 * Optional, to be ordered separately 30 ISCAR
