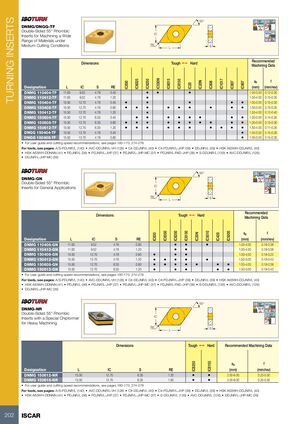

TURNING INSERTS 55° 60° 27° MAX MAX DNMG/DNGG-TF 62.5º 93° Double-Sided 55° Rhombic IC 93º-95º Inserts for Machining a Wide Range of Materials under 30º MAX Medium Cutting Conditions RE L S Recommended Dimensions Tough 1 Hard Machining Data IC530N ap f IC6025 IC8250 IC6015 IC8150 IC1017 IC20N IC830 IC806 IC807 IC907 IC20 Designation L IC S RE (mm) (mm/rev) DNMG 110404-TF 11.63 9.52 4.76 0.40 • • • 1.00-3.00 0.12-0.30 DNMG 110412-TF 11.63 9.52 4.76 1.20 • 1.50-4.00 0.15-0.35 DNMG 150404-TF 15.50 12.70 4.76 0.40 • • • • • 1.00-3.00 0.15-0.30 DNMG 150408-TF 15.50 12.70 4.76 0.80 • • • • • • • • • 1.00-3.50 0.15-0.30 DNMG 150412-TF 15.50 12.70 4.76 1.20 • 1.50-4.00 0.12-0.40 DNMG 150604-TF 15.50 12.70 6.35 0.40 • • • • • • • • 1.00-3.00 0.14-0.30 DNMG 150608-TF 15.50 12.70 6.35 0.80 • • • • • • • • • • 1.00-3.50 0.15-0.30 DNMG 150612-TF 15.50 12.70 6.35 1.20 • • • • • • • • • • 1.50-4.00 0.11-0.35 DNGG 150404-TF 15.50 12.70 4.76 0.40 • 1.00-3.00 0.15-0.30 DNGG 150408-TF 15.50 12.70 4.76 0.80 • 1.00-3.50 0.15-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • PDJNR/L-PAD-JHP (38) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 55° 60° 93º-95º MAX DNMG-GN 62.5º 30º MAX Double-Sided 55° Rhombic 27° IC MAX Inserts for General Applications 93° RE S L Recommended Dimensions Tough 1 Hard Machining Data ap f IC8350 IC8250 IC8150 IC5010 IC5005 IC20N IC830 IC428 Designation L IC S RE (mm) (mm/rev) DNMG 110408-GN 11.63 9.52 4.76 0.80 • • • 1.00-4.00 0.18-0.38 DNMG 110412-GN 11.63 9.52 4.76 1.20 • • 1.50-4.50 0.18-0.38 DNMG 150408-GN 15.50 12.70 4.76 0.80 • • • 1.00-4.00 0.18-0.22 DNMG 150412-GN 15.50 12.70 4.76 1.20 • • • • • 1.50-5.00 0.18-0.43 DNMG 150608-GN 15.50 12.70 6.35 0.80 • • • • • • • 1.00-4.00 0.18-0.38 DNMG 150612-GN 15.50 12.70 6.35 1.20 • • • • • 1.50-5.00 0.18-0.43 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • PDJNR/L-PAD-JHP (38) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 55° 60° 93º-95º MAX DNMG-NR 62.5º 30º MAX Double-Sided 55° Rhombic 27° IC MAX Inserts with a Special Chipformer 93° for Heavy Machining RE S L Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 Designation L IC S RE (mm) (mm/rev) DNMG 150612-NR 15.50 12.70 6.35 1.20 • • 2.00-6.00 0.23-0.50 DNMG 150616-NR 15.50 12.70 6.35 1.60 • • 2.00-6.00 0.25-0.50 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • AVC-DDUNR/L-VH (128) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • S-DDUNR/L (139) • AVC-DDUNR/L (126) • DDJNR/L-JHP-MC (39) 202 ISCAR
