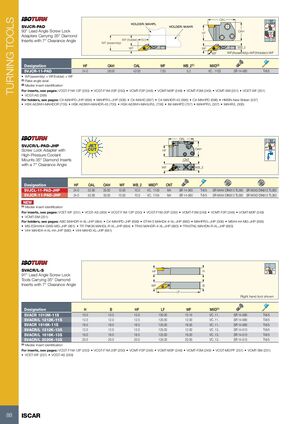

TURNING TOOLS OAL 50° MAX HOLDER: MAHPL SVJCR-PAD HOLDER: MAHR 93° 93° Lead Angle Screw Lock HF OAH 105° Adapters Carrying 35° Diamond Inserts with 7° Clearance Angle WF (holder) 19.5 WF (assembly) WF WF WB_2 93º WF(Assembly)=WF(Holder)+WF Designation HF OAH OAL WF WB_2(1) MIID(2) SVJCR-11-PAD 24.0 28.00 42.00 7.50 5.2 VC.. 1103 SR 14-560 T-8/5 • WF(assembly) = WF(holder) + WF (1) Rake angle axial (2) Master insert identification For inserts, see pages: VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-SM (251) • VCET-WF (251) • VCGT-AS (269) For holders, see pages: C#-MAHPD-JHP (698) • MAHPR/L-JHP (308) • C#-MAHD (697) • C#-MAHDR-45 (696) • C#-MAHPD (698) • HMSN-New Britain (537) • HSK A63WH-MAHDOR (705) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHUR/L (706) • IM-MAHPD (707) • MAHPR/L (307) • MAHR/L (306) OAL 50° MAX SVJCR/L-PAD-JHP 93° Screw Lock Adapter with HF OAH High-Pressure Coolant Mounts 35° Diamond Inserts CNT with a 7° Clearance Angle WF WB_2 Designation HF OAL OAH WF WB_2 MIID(1) CNT SVJCL-11-PAD-JHP 24.0 52.80 33.00 15.00 10.0 VC.. 1103 M4 SR 14-560 T-8/5 SR M4X4 DIN913 TL360 SR M3X3 DIN913 TL360 SVJCR-11-PAD-JHP 24.0 52.80 33.00 15.00 10.0 VC.. 1104 M4 SR 14-560 T-8/5 SR M4X4 DIN913 TL360 SR M3X3 DIN913 TL360 NEW (1) Master insert identification For inserts, see pages: VCET-WF (251) • VCGT-AS (269) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-SM (251) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • C#-MAHPD-JHP (698) • DT##/2 MAHD#-#-XL-JHP (860) • MAHPR/L-JHP (308) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) SVACR/L-S 52º H 91° HF MAX 91° Lead Angle Screw Lock Tools Carrying 35° Diamond Inserts with 7° Clearance Angle WF B LF Right hand tool shown Designation H B HF LF WF MIID(1) SVACR 1010M-11S 10.0 10.0 10.0 150.00 10.15 VC..11.. SR 14-560 T-8/5 SVACR/L 1212K-11S 12.0 12.0 12.0 125.00 12.00 VC..11.. SR 14-560 T-8/5 SVACR 1616K-11S 16.0 16.0 16.0 125.00 16.00 VC..11.. SR 14-560 T-8/5 SVACR/L 1212K-13S 12.0 12.0 12.0 125.00 12.00 VC..13.. SR 14-513 T-8/5 SVACR/L 1616K-13S 16.0 16.0 16.0 125.00 16.00 VC..13.. SR 14-513 T-8/5 SVACR/L 2020K-13S 20.0 20.0 20.0 125.00 20.00 VC..13.. SR 14-513 T-8/5 (1) Master insert identification For inserts, see pages: VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCGT-MD/PF (251) • VCMT-SM (251) • VCET-WF (251) • VCGT-AS (269) 88 ISCAR
