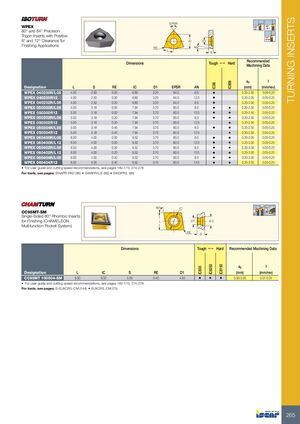

TURNING INSERTS EPSR WPEX 90° 60° 80° and 84° Precision Trigon Inserts with Positive 45° 8° and 12° Clearance for IC D1 Finishing Applications AN° RE L S Recommended Dimensions Tough 1 Hard Machining Data ap f IC908 IC08 Designation L S RE IC D1 EPSR AN (mm) (mm/rev) WPEX 040200R/L08 4.00 2.50 0.00 6.60 3.20 84.0 8.0 • 0.20-2.00 0.05-0.20 WPEX 040200R12 4.00 2.50 0.00 6.60 3.20 84.0 12.0 • 0.20-2.00 0.05-0.20 WPEX 040202R/L08 4.00 2.50 0.20 6.60 3.20 84.0 8.0 • 0.20-2.00 0.05-0.20 WPEX 050300R/L08 5.00 3.18 0.00 7.94 3.70 80.0 8.0 • • 0.20-2.50 0.05-0.20 WPEX 050300R12 5.00 3.18 0.00 7.94 3.70 80.0 12.0 • • 0.20-2.50 0.05-0.20 WPEX 050302R/L08 5.00 3.18 0.20 7.94 3.70 80.0 8.0 • • 0.20-2.50 0.05-0.20 WPEX 050302R12 5.00 3.18 0.20 7.94 3.70 80.0 12.0 • 0.20-2.50 0.05-0.20 WPEX 050304R/L08 5.00 3.18 0.40 7.94 3.70 80.0 8.0 • • 0.20-2.50 0.05-0.20 WPEX 050304R12 5.00 3.18 0.40 7.94 3.70 80.0 12.0 • 0.20-2.50 0.05-0.20 WPEX 060400R/L08 6.00 4.00 0.00 9.52 3.70 80.0 8.0 • • 0.20-3.00 0.05-0.20 WPEX 060400R/L12 6.00 4.00 0.00 9.52 3.70 80.0 12.0 • • 0.20-3.00 0.05-0.20 WPEX 060402R/L08 6.00 4.00 0.20 9.52 3.70 80.0 8.0 • • 0.20-3.00 0.05-0.20 WPEX 060402R/L12 6.00 4.00 0.20 9.52 3.70 80.0 12.0 • • 0.20-3.00 0.05-0.20 WPEX 060404R/L08 6.00 4.00 0.40 9.52 3.70 80.0 8.0 • • 0.20-3.00 0.05-0.20 WPEX 060404R12 6.00 4.00 0.40 9.52 3.70 80.0 12.0 • • 0.20-3.00 0.05-0.20 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: SWAPR-PAD (96) • SWAPR/L-S (96) • SWDPR/L (96) 80° IC 95º CC95MT-SM 95º 95º Single-Sided 80° Rhombic Inserts for Finishing (CHAMELEON L D1 6.2 Multifunction Pocket System) RE S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC830 Designation L IC S RE D1 (mm) (mm/rev) CC95MT 100504-SM 9.50 9.52 5.00 0.40 4.50 • • • 0.50-3.00 0.07-0.24 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: S-SUXCR/L-CM (144) • SUXCR/L-CM (70) 265
