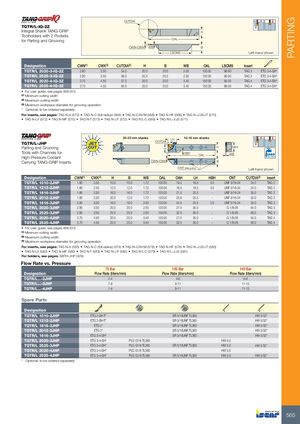

PARTING CUTDIA TGTR/L-IQ-2Z Integral Shank TANG-GRIP H Toolholders with 2 Pockets OAL for Parting and Grooving CWN-CWX WB B LSCMS Left-hand shown Designation CWN(1) CWX(2) CUTDIA(3) H B WB OAL LSCMS Insert TGTR/L 2020-3-IQ-2Z 2.80 3.50 54.0 20.0 20.0 2.50 150.00 98.90 TAG 3 ETG 3-4-SH* TGTR/L 2525-3-IQ-2Z 2.80 3.50 56.0 25.0 25.0 2.50 150.00 98.00 TAG 3 ETG 3-4-SH* TGTR/L 2020-4-IQ-2Z 3.70 4.50 57.0 20.0 20.0 3.40 150.00 95.00 TAG 4 ETG 3-4-SH* TGTR/L 2525-4-IQ-2Z 3.70 4.50 65.0 25.0 25.0 3.40 150.00 88.00 TAG 4 ETG 3-4-SH* • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) 20-25 mm shanks LH 10-16 mm shanks CUTDIA TGTR/L-JHP Parting and Grooving H H OAH Tools with Channels for HBH WB OAL High-Pressure Coolant Bar Max Carrying TANG-GRIP Inserts CWN-CWX B CNT (Inlet ports) Left-hand shown Designation CWN(1) CWX(2) H B WB OAL OAH LH HBH CNT CUTDIA(3) Insert TGTR/L 1010-2JHP 1.80 2.50 10.0 10.0 1.72 100.00 19.5 18.5 5.0 UNF 5/16-24 24.0 TAG 2 TGTR/L 1212-2JHP 1.80 2.50 12.0 12.0 1.72 100.00 19.5 18.5 3.0 UNF 5/16-24 24.0 TAG 2 TGTR/L 1616-2JHP 1.80 2.50 16.0 16.0 1.72 120.00 21.5 25.5 - UNF 5/16-24 35.0 TAG 2 TGTR/L 2012-2JHP 1.80 2.50 20.0 12.0 1.72 120.00 25.6 25.5 - UNF 5/16-24 35.0 TAG 2 TGTR/L 1616-3JHP 2.80 3.50 16.0 16.0 2.50 120.00 24.5 25.5 3.0 UNF 5/16-24 35.0 TAG 3 TGTR/L 2020-3JHP 2.80 3.50 20.0 20.0 2.50 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 3 TGTR/L 2525-3JHP 2.80 3.50 25.0 25.0 2.50 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 3 TGTR/L 2020-4JHP 3.70 4.50 20.0 20.0 3.40 120.00 27.0 35.0 - G 1/8-28 54.0 TAG 4 TGTR/L 2525-4JHP 3.70 4.50 25.0 25.0 3.40 150.00 32.5 35.0 - G 1/8-28 56.0 TAG 4 • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum workpiece diameter for grooving operation For inserts, see pages: TAG N-A (583) • TAG N-C (full radius) (579) • TAG N-C/W/M (578) • TAG N-HF (578) • TAG N-J/JS/JT (580) • TAG N-LF (582) • TAG N-MF (580) • TAG N-T (583) • TAG N-UT (582) • TAG R/L-C (579) • TAG R/L-J/JS (581) For holders, see pages: SBTH-JHP (429) Flow Rate vs. Pressure 70 Bar 100 Bar 140 Bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) TGTR/L...-2JHP 2-4 4-6 6-8 TGTR/L...-3JHP 7-9 9-11 11-13 TGTR/L...-4JHP 7-9 9-11 11-13 Spare Parts Designation TGTR/L 1010-2JHP ETG 2-SH-T* SR 5/16UNF TL360 HW 5/32" TGTR/L 1212-2JHP ETG 2-SH-T* SR 5/16UNF TL360 HW 5/32" TGTR/L 1616-2JHP ETG 2* SR 5/16UNF TL360 HW 5/32" TGTR/L 2012-2JHP ETG 2* SR 5/16UNF TL360 HW 5/32" TGTR/L 1616-3JHP ETG 3-4-SH* SR 5/16UNF TL360 HW 5/32" TGTR/L 2020-3JHP ETG 3-4-SH* PLG G1/8 TL360 HW 5.0 TGTR/L 2525-3JHP ETG 3-4-SH* PLG G1/8 TL360 SR 5/16UNF TL360 HW 5.0 HW 5/32” TGTR/L 2020-4JHP ETG 3-4-SH* PLG G1/8 TL360 HW 5.0 TGTR/L 2525-4JHP ETG 3-4-SH* PLG G1/8 TL360 SR 5/16UNF TL360 HW 5.0 HW 5/32” * Optional, to be ordered separately 565
