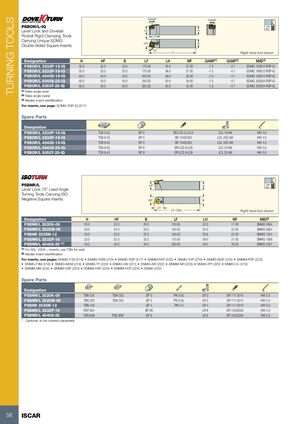

TURNING TOOLS GAMP GAMF PSBOR/L-IQ 75º Lever Lock and Dovetail HF H Pocket Rigid Clamping Tools LH Carrying Unique SOMG WF B Double-Sided Square Inserts 75° LF Right hand tool shown Designation H HF B LF LH WF GAMP(1) GAMF(2) MIID(3) PSBOR/L 3232P-15-IQ 32.0 32.0 32.0 170.00 35.0 27.00 -7.5 -4.7 SOMG 150612-R3P-IQ PSBOR/L 3232P-19-IQ 32.0 32.0 32.0 170.00 38.0 27.00 -7.5 -4.7 SOMG 190612-R3P-IQ PSBOR/L 4040S-19-IQ 40.0 40.0 40.0 250.00 38.0 35.00 -7.5 -4.7 SOMG 190612-R3P-IQ PSBOR/L 4040S-25-IQ 40.0 40.0 40.0 250.00 50.0 35.00 -7.5 -4.7 SOMG 250924-R3P-IQ PSBOR/L 5050T-25-IQ 50.0 50.0 50.0 300.00 50.0 45.00 -7.5 -4.7 SOMG 250924-R3P-IQ (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see page: SOMG-R3P-IQ (217) Spare Parts Designation PSBOR/L 3232P-15-IQ TSX 5-IQ SP 5 SR LCS 5-L25.5 LCL 16-NX HW 3.0 PSBOR/L 3232P-19-IQ TSX 6-IQ SP 5 SR 10402352 LCL 20C-NX HW 4.0 PSBOR/L 4040S-19-IQ TSX 6-IQ SP 5 SR 10402352 LCL 20C-NX HW 4.0 PSBOR/L 4040S-25-IQ TSX 8-IQ SP 8 SR LCS 8-L39 LCL 32-NX HW 5.0 PSBOR/L 5050T-25-IQ TSX 8-IQ SP 8 SR LCS 8-L39 LCL 32-NX HW 5.0 PSBNR/L HF H 75º Lever Lock 75° Lead Angle Turning Tools Carrying ISO Negative Square Inserts WF B LH LF=OAL Right hand tool shown Designation H HF B LF LH WF MIID(2) PSBNR/L 2020K-09 20.0 20.0 20.0 125.00 20.0 17.00 SNMG 0904 PSBNR/L 2525M-09 25.0 25.0 25.0 150.00 20.0 22.00 SNMG 0904 PSBNR 2525M-12 25.0 25.0 25.0 150.00 26.8 22.00 SNMG 1204 PSBNR/L 3232P-19 32.0 32.0 32.0 170.00 39.0 27.00 SNMG 1906 PSBNR/L 4040S-25 (1) 40.0 40.0 40.0 250.00 48.0 35.00 SNMG 2507 (1) For SN.. 2509... inserts, use TSN 84 seat (2) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-R3M (219) • SNMG-R3P (217) • SNMM-R4P (223) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMM-NR (225) • SNMG-PP (220) • SNMG-VL (219) • SNMM-NM (224) • SNMM-H3P (223) • SNMM-H4P (224) • SNMM-H5P (224) • SNMA (222) Spare Parts Designation PSBNR/L 2020K-09 TSN 323 TSN 333 SP 3 PN 3-3L LR 3 SR 117-2014 HW 2.5 PSBNR/L 2525M-09 TSN 323 TSN 333 SP 3 PN 3-3L LR 3 SR 117-2014 HW 2.5 PSBNR 2525M-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 PSBNR/L 3232P-19 RST 634 SP 66 LR 6 SR 10402352 HW 4.0 PSBNR/L 4040S-25 TSN 84N TSN 85N* SP 8 LR 8 SR 10402264 HW 5.0 * Optional, to be ordered separately 56 ISCAR
