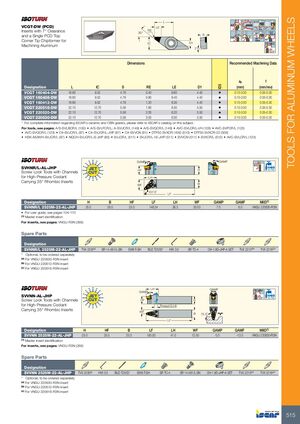

TOOLS FOR ALUMINUM WHEELS L 25º 107.5º 117.5° MAX VCGT-DW (PCD) LE 35º 95º Inserts with 7° Clearance RE MAX 35° 95º 50° and a Single PCD Top S 31º MAX 52º MAX 112° 91° MAX 48° Corner Tip Chipformer for MAX 93° IC D1 70°MAX Machining Aluminum 7° 72.5º Dimensions Recommended Machining Data ap f ID5 Designation L IC S RE LE D1 (mm) (mm/rev) VCGT 160404-DW 16.60 9.52 4.76 0.40 6.60 4.40 • 0.10-3.00 0.05-0.30 VCGT 160408-DW 16.60 9.52 4.76 0.80 6.40 4.40 • 0.10-3.00 0.05-0.30 VCGT 160412-DW 16.60 9.52 4.76 1.20 6.30 4.40 • 0.10-3.00 0.05-0.30 VCGT 220516-DW 22.10 12.70 5.56 1.60 6.30 5.50 • 0.10-3.00 0.05-0.30 VCGT 220520-DW 22.10 12.70 5.56 2.00 6.20 5.50 • 0.10-3.00 0.05-0.30 VCGT 220530-DW 22.10 12.70 5.56 3.00 6.00 5.50 • 0.10-3.00 0.05-0.30 * For complete information regarding ISCAR’s ceramic and CBN grades, please refer to ISCAR’s catalog on the subject. For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L-VH (128) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • DTF50 SVXCR-16X2 (510) • DTF50 SVXCR-22 (509) • HSK A63WH-SVJCR/L (87) • NQCH-SVJCR/L-S-JHP (85) • SVJCR/L (511) • SVJCR/L-16-JHP (511) • SVVCN (511) • SVXCR/L (512) • AVC-SVLCR/L (123) GAMP GAMF 107.5º SVHNR/L-AL-JHP HF H Bar Max Screw Lock Tools with Channels for High-Pressure Coolant LH Carrying 35° Rhombic Inserts B WF 107.5˚ LF Designation H B HF LF LH WF GAMP GAMF MIID(1) SVHNR/L 2525M-22-AL-JHP 25.0 25.0 25.0 146.34 36.3 30.03 7.0 6.0 VNGU 220630-R3N • For user guide, see pages 104-110 (1) Master insert identification For inserts, see pages: VNGU-R3N (268) Spare Parts Designation SVHNR/L 2525M-22-AL-JHP TVX 2230(a) SR 14-591/L-SN SW6-T-SH BLD T20/S7 HW 3.0 SR TC-4 CH-1.9D-JHP-A SET TVX 2212(b)* TVX 2216(c)* * Optional, to be ordered separately (a) For VNGU 220630-R3N insert (b) For VNGU 220612-R3N insert (c) For VNGU 220616-R3N insert LH GAMF 70°MAX GAMP SVVNN-AL-JHP 72.5º Bar Max Screw Lock Tools with Channels HF H for High-Pressure Coolant Thread G1/8 Carrying 35° Rhombic Inserts WF B 72.5˚ LF Designation H HF B LF LH WF GAMP GAMF MIID(1) SVVNN 2525M-22-AL-JHP 25.0 25.0 25.0 150.00 41.0 12.50 0.0 -13.5 VNGU 220630-R3N (1) Master insert identification For inserts, see pages: VNGU-R3N (268) Spare Parts Designation SVVNN 2525M-22-AL-JHP TVX 2230(a) HW 3.0 BLD T20/S7 SW6-T-SH SR TC-4 SR 14-591/L-SN CH-1.9D-JHP-A SET TVX 2212(b)* TVX 2216(c)* * Optional, to be ordered separately (a) For VNGU 220630-R3N insert (b) For VNGU 220612-R3N insert (c) For VNGU 220616-R3N insert 515
