Токарные инструменты Iscar (часть 1) 2026 - страница 516

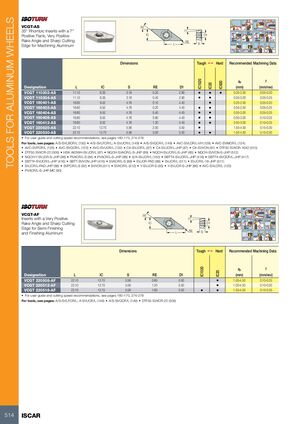

TOOLS FOR ALUMINUM WHEELS 52º 25º 117.5° MAX VCGT-AS 35˚ 93º 35° Rhombic Inserts with a 7° 7° 50° 70°MAX 93º 95º Positive Flank, Very Positive IC D1 MAX 50° 48° Rake Angle and Sharp Cutting RE MAX 93° MAX 72.5º L S Edge for Machining Aluminum 107.5º 31º MAX 52º 112° 91° MAX 35º MAX 95º Dimensions Tough 1 Hard Recommended Machining Data ap f IC1520 IC920 IC20 Designation L IC S RE D1 (mm) (mm/rev) VCGT 110302-AS 11.10 6.35 3.18 0.20 2.90 • • • 0.20-2.50 0.05-0.20 VCGT 110304-AS 11.10 6.35 3.18 0.40 2.90 • • 0.50-3.00 0.05-0.25 VCGT 160401-AS 16.60 9.52 4.76 0.10 4.40 • 0.20-2.50 0.05-0.20 VCGT 160402-AS 16.60 9.52 4.76 0.20 4.40 • • 0.50-2.50 0.05-0.25 VCGT 160404-AS 16.60 9.52 4.76 0.40 4.40 • • 0.50-3.00 0.05-0.25 VCGT 160408-AS 16.60 9.52 4.76 0.80 4.40 • • 0.50-3.00 0.10-0.25 VCGT 160412-AS 16.60 9.52 4.76 1.20 4.40 • • 0.50-3.00 0.10-0.25 VCGT 220520-AS 22.10 12.70 5.56 2.00 5.50 • 1.50-4.50 0.15-0.30 VCGT 220530-AS 22.10 12.70 5.56 3.00 5.50 • • 1.50-4.50 0.15-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L-VH (128) • AVC-SVMCR/L (124) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • AVC-SVUCR/L (122) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • DTF50 SVXCR-16X2 (510) • DTF50 SVXCR-22 (509) • HSK A63WH-SVJCR/L (87) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-SVVCN-S-JHP (512) • NQCH-Y-SVJCR-S-JHP (86) • PVACR/L-S (84) • PVACR/L-S-JHP (89) • S/A-SVJCR/L (150) • SBTT#-SVJCR/L-JHP (416) • SBTT#-SVQCR/L-JHP (417) • SBTT#-SVUCR/L-JHP (416) • SBTT-SVVCN-JHP (416) • SVACR/L-S (88) • SVJCR-PAD (88) • SVJCR/L (511) • SVJCR/L-16-JHP (511) • SVJCR/L-PAD-JHP (88) • SVPCR/L-S (92) • SVVCN (511) • SVXCR/L (512) • Y-SVJCR-S (85) • Y-SVJCR-S-JHP (86) • AVC-SVLCR/L (123) • PVACR/L-S-JHP-MC (90) 52º 25º 93º 117.5° MAX VCGT-AF 35˚ 93º 50° MAX Inserts with a Very Positive 7° 50° 70°MAX 107.5º MAX 95º Rake Angle and Sharp Cutting IC D1 48° Edge for Semi-Finishing 93° 35º MAX 72.5º MAX RE S and Finishing Aluminum L 31º MAX 52º 112° 91° MAX 95º Dimensions Tough 1 Hard Recommended Machining Data ap f IC1520 IC20 Designation L IC S RE D1 (mm) (mm/rev) VCGT 220508-AF 22.10 12.70 5.56 0.80 5.50 • 1.00-4.50 0.10-0.25 VCGT 220512-AF 22.10 12.70 5.56 1.20 5.50 • 1.00-4.50 0.10-0.30 VCGT 220516-AF 22.10 12.70 5.56 1.60 5.50 • • 1.50-4.50 0.10-0.35 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • DTF50 SVXCR-22 (509) 514 ISCAR
