Токарные инструменты Iscar (часть 1) 2026 - страница 658

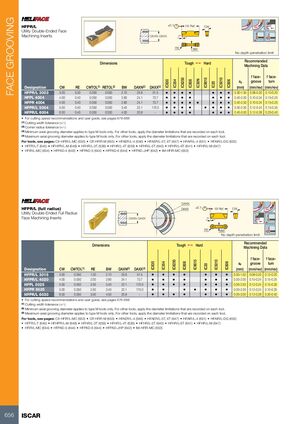

FACE GROOVING ±0.1 19 Ref. HFPR/L CW Utility Double-Ended Face Machining Inserts DAXN-DAXX 7° RE BW No depth penetration limit Recommended Dimensions Tough 1 Hard Machining Data f face- f face- IC8250 IC9015 IC5010 IC30N ap groove turn IC830 IC354 IC808 IC806 IC20 Designation CW RE CWTOL(1) RETOL(2) BW DAXN(2) DAXX(3) (mm) (mm/rev) (mm/rev) HFPR/L 3003 3.00 0.30 0.050 0.050 2.10 25.6 51.5 • • • • • • • 0.30-1.50 0.08-0.20 0.10-0.20 HFPL 4004 4.00 0.40 0.050 0.050 2.80 24.1 73.7 • • • • • • • 0.40-2.00 0.10-0.24 0.15-0.25 HFPR 4004 4.00 0.40 0.050 0.050 2.80 24.1 73.7 • • • • • • • • 0.40-2.50 0.10-0.24 0.15-0.25 HFPR/L 5004 5.00 0.40 0.050 0.050 3.40 22.1 170.0 • • • • • • • • 0.50-2.50 0.12-0.24 0.15-0.35 HFPR/L 6004 6.00 0.40 0.050 0.050 4.00 20.8 - • • • • • • • 0.40-3.00 0.12-0.28 0.20-0.40 • For cutting speed recommendations and user guide, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool. (4) Maximum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool. For tools, see pages: C#-HFIR/L-MC (653) • CR HFIR-M (655) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHPR/L-M (648) • HFHR/L-3T (638) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFHR/L-6T (641) • HFHR/L-M (647) • HFIR/L-MC (654) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • IM-HFIR-MC (653) DAXN HFPR/L (full radius) DAXX ±0.1 19 Ref. CW Utility Double-Ended Full Radius Face Machining Inserts DAXN-DAXX 7° RE BW No depth penetration limit Recommended Dimensions Tough 1 Hard Machining Data f face- f face- IC8250 IC9015 IC5010 ap groove turn IC830 IC354 IC808 IC806 IC20 Designation CW CWTOL(1) RE BW DAXN(2) DAXX(3) (mm) (mm/rev) (mm/rev) HFPR/L 3015 3.00 0.050 1.50 2.10 25.6 51.5 • • • • • • • 0.00-1.50 0.08-0.20 0.12-0.20 HFPR/L 4020 4.00 0.050 2.00 2.80 24.1 73.7 • • • • • • • 0.00-2.00 0.10-0.24 0.15-0.25 HFPL 5025 5.00 0.050 2.50 3.40 22.1 170.0 • • • • • • • 0.00-2.50 0.12-0.24 0.15-0.35 HFPR 5025 5.00 0.050 2.50 3.40 22.1 170.0 • • • • • • • 0.00-2.50 0.12-0.24 0.15-0.35 HFPR/L 6030 6.00 0.050 3.00 4.00 20.8 - • • • • • • • 0.00-3.00 0.12-0.28 0.20-0.40 • For cutting speed recommendations and user guide, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Minimum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool. (3) Maximum axial grooving diameter-applies to type M tools only. For other tools, apply the diameter limitations that are recorded on each tool. For tools, see pages: C#-HFIR/L-MC (653) • CR HFIR-M (655) • HFAER/L-4 (646) • HFAER/L-5T, 6T (647) • HFAIR/L-4 (651) • HFAIR/L-DG (652) • HFFR/L-T (645) • HFHPR/L-M (648) • HFHR/L-3T (638) • HFHR/L-4T (639) • HFHR/L-5T (640) • HFHR/L-6T (641) • HFHR/L-M (647) • HFIR/L-MC (654) • HFPAD-5 (644) • HFPAD-6 (644) • HFPAD-JHP (642) • IM-HFIR-MC (653) 656 ISCAR
