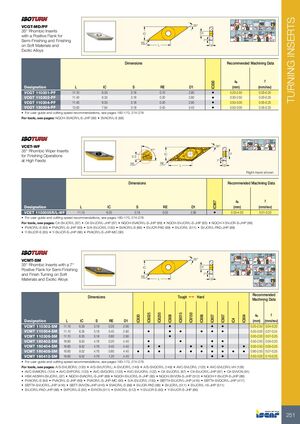

Токарные инструменты Iscar (часть 1) 2026 - страница 253

TURNING INSERTS 25º 107.5º 35° 117.5° MAX VCGT-MD/PF 52º 91° MAX 35º 95º 35° Rhombic Inserts MAX 50° 70°MAX IC D1 95º MAX with a Positive Flank for 31º MAX 112° 48° Semi-Finishing and Finishing RE 7° MAX 93° 72.5º on Soft Materials and L S Exotic Alloys Dimensions Recommended Machining Data ap f IC830 Designation L IC S RE D1 (mm) (mm/rev) VCGT 110301-PF 11.10 6.35 3.18 0.10 2.90 • 0.20-2.50 0.03-0.25 VCGT 110302-PF 11.40 6.35 3.18 0.20 2.90 • 0.30-2.50 0.03-0.25 VCGT 110304-PF 11.40 6.35 3.18 0.40 2.90 • 0.50-3.00 0.05-0.25 VCGT 130304-PF 13.00 7.94 3.18 0.40 3.40 • 0.50-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: NQCH-SVACR/L-S-JHP (89) • SVACR/L-S (88) 50° 93º MAX VCET-WF 35° 52º 50° 91° MAX MAX 93° 35° Rhombic Wiper Inserts 87° WF IC D1 for Finishing Operations 0.3 R at High Feeds 7° RE RE L S Right-hand shown Dimensions Recommended Machining Data ap f IC907 Designation L IC S RE D1 (mm) (mm/rev) VCET 1103005R/L-WF 11.10 6.35 3.18 0.05 2.90 • 0.05-4.00 0.01-0.20 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-Y-SVJCR-S-JHP (86) • PVACR/L-S (84) • PVACR/L-S-JHP (89) • S/A-SVJCR/L (150) • SVACR/L-S (88) • SVJCR-PAD (88) • SVJCR/L (511) • SVJCR/L-PAD-JHP (88) • Y-SVJCR-S (85) • Y-SVJCR-S-JHP (86) • PVACR/L-S-JHP-MC (90) 52º 50° 70°MAX MAX VCMT-SM 35° 91° 52º MAX 93º 93° 72.5º 35° Rhombic Inserts with a 7° IC D1 93º 95º Positive Flank for Semi-Finishing 31º 25º MAX 117.5° MAX 112° 50° 48° and Finish Turning on Soft RE 7° MAX MAX Materials and Exotic Alloys L S 107.5º 35º MAX 95º Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC8250 IC6015 IC8150 IC830 IC908 IC806 IC807 IC907 IC804 IC4 Designation L IC S RE D1 (mm) (mm/rev) VCMT 110302-SM 11.10 6.35 3.18 0.20 2.90 • • • 0.20-2.50 0.04-0.20 VCMT 110304-SM 11.10 6.35 3.18 0.40 2.90 • • • • • • 0.50-3.00 0.07-0.24 VCMT 110308-SM 11.10 6.35 3.18 0.80 2.90 • 0.50-2.00 0.07-0.25 VCMT 160402-SM 16.60 9.52 4.76 0.20 4.40 • • • • 0.50-2.50 0.05-0.20 VCMT 160404-SM 16.60 9.52 4.76 0.40 4.40 • • • • • • • 0.50-2.50 0.05-0.25 VCMT 160408-SM 16.60 9.52 4.76 0.80 4.40 • • • • • • • • • • 0.90-2.50 0.07-0.25 VCMT 160412-SM 16.60 9.52 4.76 1.20 4.40 • • 0.50-3.00 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-SVLBCR/L (150) • A/S-SVLFCR/L; A-SVUCR/L (149) • A/S-SVQCR/L (149) • AVC-SVLCR/L (123) • AVC-SVLCR/L-VH (128) • AVC-SVMCR/L (124) • AVC-SVPCR/L (123) • AVC-SVQCR/L (123) • AVC-SVUCR/L (122) • C#-SVJCR/L (87) • C#-SVJCR/L-JHP (87) • C#-SVVCN (91) • HSK A63WH-SVJCR/L (87) • NQCH-SVACR/L-S-JHP (89) • NQCH-SVJCR/L-S-JHP (85) • NQCH-SVVCN-S-JHP (512) • NQCH-Y-SVJCR-S-JHP (86) • PVACR/L-S (84) • PVACR/L-S-JHP (89) • PVACR/L-S-JHP-MC (90) • S/A-SVJCR/L (150) • SBTT#-SVJCR/L-JHP (416) • SBTT#-SVQCR/L-JHP (417) • SBTT#-SVUCR/L-JHP (416) • SBTT-SVVCN-JHP (416) • SVACR/L-S (88) • SVJCR-PAD (88) • SVJCR/L (511) • SVJCR/L-16-JHP (511) • SVJCR/L-PAD-JHP (88) • SVPCR/L-S (92) • SVVCN (511) • SVXCR/L (512) • Y-SVJCR-S (85) • Y-SVJCR-S-JHP (86) 251
