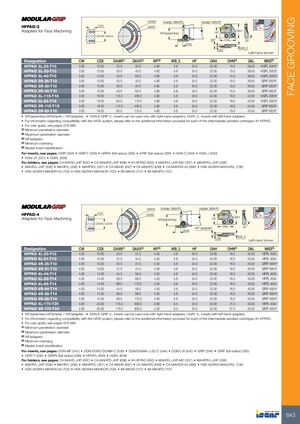

FACE GROOVING DAXN Holder: MAHPL Holder: MAHR HFPAD-3 CDX DAXX Adapters for Face Machining HF OAH WF(assembly) DAXN-DAXX WF OAL D OHN WB_2 CW Left-hand shown Designation CW CDX DAXN(1) DAXX(2) WF(3) WB_2 HF OAH OHN(4) OAL MIID(5) HFPAD 3L-25-T10 3.00 10.00 25.0 30.0 4.80 5.8 24.0 32.00 15.0 39.50 HGPL 3003Y HFPAD 3L-30-T10 3.00 10.00 30.0 40.0 4.80 5.8 24.0 32.00 15.0 39.50 HGPL 3003Y HFPAD 3L-40-T10 3.00 10.00 40.0 65.0 4.80 5.8 24.0 32.00 15.0 39.50 HGPL 3003Y HFPAD 3R-25-T10 3.00 10.00 25.0 30.0 4.80 5.8 24.0 32.00 15.0 39.50 GRIP 3003Y HFPAD 3R-30-T10 3.00 10.00 30.0 40.0 4.80 5.8 24.0 32.00 15.0 39.50 GRIP 3003Y HFPAD 3R-40-T10 3.00 10.00 40.0 65.0 4.80 5.8 24.0 32.00 15.0 39.50 GRIP 3003Y HFPAD 3L-115-T18 3.00 18.00 115.0 400.0 4.80 5.8 24.0 32.00 19.0 43.50 HGPL 3003Y HFPAD 3L-65-T18 3.00 18.00 65.0 115.0 4.80 5.8 24.0 32.00 19.0 43.50 HGPL 3003Y HFPAD 3R-115-T18 3.00 18.00 115.0 400.0 4.80 5.8 24.0 32.00 19.0 43.50 GRIP 3003Y HFPAD 3R-65-T18 3.00 18.00 65.0 115.0 4.80 5.8 24.0 32.00 19.0 43.50 GRIP 3003Y • WF(assembly)=WF(shank) + WF(adapter) • HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) WF(adapter) (4) Minimum overhang (5) Master insert identification For inserts, see pages: GRIP (294) • GRIP-T (295) • GRIPA (full radius) (296) • GRIP (full radius) (295) • HGN-C (549) • HGN-J (550) • HGN-UT (551) • HGPL (658) For holders, see pages: C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • IH-HFPAD (650) • MAHR/L-JHP-MC (307) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L (306) • MAHPR/L (307) • C#-MAHD (697) • C#-MAHPD (698) • C#-MAHDR-45 (696) • HSK A63WH-MAHUR/L (706) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHDOR (705) • IM-MAHD (707) • IM-MAHPD (707) DAXN Holder: MAHPL Holder: MAHR HFPAD-4 CDX DAXX OAH Adapters for Face Machining WF(assembly) HF DAXN-DAXX OAL D WF (adapter) OHN WB_2 CW Left-hand shown Designation CW CDX DAXN(1) DAXX(2) WF(3) WB_2 HF OAH OHN(4) OAL MIID(5) HFPAD 4L-25-T10 4.00 10.00 25.0 31.0 4.50 5.8 24.0 32.00 16.0 40.50 HFPL 4004 HFPAD 4L-31-T10 4.00 10.00 31.0 44.0 4.50 5.8 24.0 32.00 16.0 40.50 HFPL 4004 HFPAD 4R-25-T10 4.00 10.00 25.0 31.0 4.50 5.8 24.0 32.00 16.0 40.50 GRIP 4004Y HFPAD 4R-31-T10 4.00 10.00 31.0 44.0 4.50 5.8 24.0 32.00 16.0 40.50 GRIP 4004Y HFPAD 4L-44-T14 4.00 14.00 44.0 58.0 4.50 5.8 24.0 32.00 16.0 40.50 HFPL 4004 HFPAD 4L-58-T14 4.00 14.00 58.0 88.0 4.50 5.8 24.0 32.00 16.0 40.50 HFPL 4004 HFPAD 4L-88-T14 4.00 14.00 88.0 175.0 4.50 5.8 24.0 32.00 16.0 40.50 HFPL 4004 HFPAD 4R-44-T14 4.00 14.00 44.0 58.0 4.50 5.8 24.0 32.00 16.0 40.50 GRIP 4004Y HFPAD 4R-58-T14 4.00 14.00 58.0 88.0 4.50 5.8 24.0 32.00 16.0 40.50 GRIP 4004Y HFPAD 4R-88-T14 4.00 14.00 88.0 175.0 4.50 5.8 24.0 32.00 16.0 40.50 GRIP 4004Y HFPAD 4L-175-T20 4.00 20.00 175.0 800.0 4.80 6.5 24.0 32.00 21.0 45.50 HFPL 4004 HFPAD 4R-175-T20 4.00 20.00 175.0 800.0 4.50 6.5 24.0 32.00 21.0 45.50 GRIP 4004Y • WF(assembly)=WF(shank) + WF(adapter) • DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4.. inserts with left-hand adapters • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFPAD. • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) WF(adapter) (4) Minimum overhang (5) Master insert identification For inserts, see pages: DGN-MF (541) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • DGR/L-B (542) • GRIP (294) • GRIP (full radius) (295) • GRIP-T (295) • GRIPA (full radius) (296) • HFPR/L (656) • HGPL (658) For holders, see pages: C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • IH-HFPAD (650) • MAHR/L-JHP-MC (307) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L (306) • MAHPR/L (307) • C#-MAHD (697) • C#-MAHPD (698) • C#-MAHDR-45 (696) • HSK A63WH-MAHUR/L (706) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHDOR (705) • IM-MAHD (707) • IM-MAHPD (707) 643
