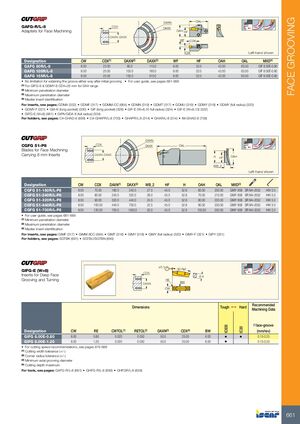

FACE GROOVING DAXN OAL GAFG-R/L-8 CDX DAXX Adapters for Face Machining OAH HF DAXN-DAXX WF CDX CW Left-hand shown Designation CW CDX(1) DAXN(2) DAXX(3) WF HF OAH OAL MIID(4) GAFG 80R/L-8 8.00 23.00 80.0 115.0 9.00 32.0 42.00 63.50 GIF 8.00E-0.80 GAFG 105R/L-8 8.00 25.00 105.0 160.0 9.00 32.0 42.00 63.50 GIF 8.00E-0.80 GAFG 155R/L-8 8.00 25.00 155.0 510.0 9.00 32.0 42.00 63.50 GIF 8.00E-0.80 • No limitation for widening the groove either way after initial grooving • For user guide, see pages 681-688 (1) For GIFG-8 & GDMY-8 CDX=25 mm for DAX range (2) Minimum penetration diameter (3) Maximum penetration diameter (4) Master insert identification For inserts, see pages: GDMA (332) • GDMF (317) • GDMM-CC (664) • GDMN (319) • GDMT (317) • GDMU (319) • GDMY (318) • GDMY (full radius) (320) • GDMY-F (321) • GIA-K (long pocket) (330) • GIF (long pocket) (328) • GIF-E (W=8,10 full radius) (324) • GIF-E (W=8,10) (322) • GIFG-E (W=8) (661) • GIPA/GIDA 8 (full radius) (334) For holders, see pages: C#-GHAD-8 (699) • C#-GHAPR/L-8 (700) • GHAPR/L-8 (314) • GHAR/L-8 (314) • IM-GHAD-8 (708) DAXN CGFG 51-P8 CDX DAXX OAL Blades for Face Machining Carrying 8 mm Inserts DAXN-DAXX H OAH HF WB_2 Left-hand shown Designation CW CDX DAXN(1) DAXX(2) WB_2 HF H OAH OAL MIID(3) CGFG 51-180R/L-P8 8.00 70.00 180.0 240.0 27.5 45.0 52.6 60.00 200.00 GIMY 808 SR M4-2052 HW 3.0 CGFG 51-240R/L-P8 8.00 80.00 240.0 320.0 26.0 45.0 52.6 70.00 210.00 GIMY 808 SR M4-2052 HW 3.0 CGFG 51-320R/L-P8 8.00 90.00 320.0 440.0 24.5 45.0 52.6 80.00 220.00 GIMY 808 SR M4-2052 HW 3.0 CGFG 51-440R/L-P8 8.00 100.00 440.0 700.0 22.5 45.0 52.6 90.00 230.00 GIMY 808 SR M4-2052 HW 3.0 CGFG 51-700R/L-P8 8.00 120.00 700.0 1500.0 20.0 45.0 52.6 100.00 250.00 GIMY 808 SR M4-2052 HW 3.0 • For user guide, see pages 681-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Master insert identification For inserts, see pages: GIMF (317) • GIMM 8CC (664) • GIMT (316) • GIMY (318) • GIMY (full radius) (320) • GIMY-F (321) • GIPY (331) For holders, see pages: SGTBK (691) • SGTBU/SGTBN (690) ±0.1 30 Ref. GIFG-E (W=8) CDX Inserts for Deep Face 6.4 Grooving and Turning RE DAXN BW CW Recommended Dimensions Tough 1 Hard Machining Data f face-groove IC635 IC20 Designation CW RE CWTOL(1) RETOL(2) DAXN(3) CDX(4) BW (mm/rev) GIFG 8.00E-0.80 8.00 0.80 0.020 0.050 50.0 25.00 6.00 • • 0.15-0.25 GIFG 8.00E-1.20 8.00 1.20 0.020 0.050 50.0 25.00 6.00 • 0.15-0.25 • For cutting speed recommendations, see pages 676-688 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Minimum axial grooving diameter (4) Cutting depth maximum For tools, see pages: GAFG-R/L-8 (661) • GHFG-R/L-8 (659) • GHFGR/L-8 (659) 661
