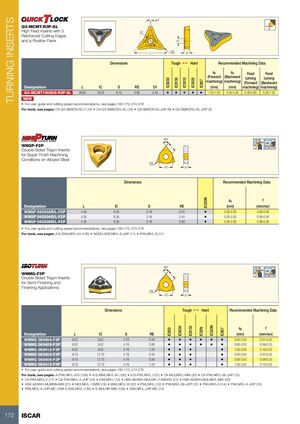

TURNING INSERTS 44˚ Q3-MCMT-R3P-SL High Feed Inserts with 3 IC Reinforced Cutting Edges and a Positive Flank D1 L RE S Dimensions Tough 1 Hard Recommended Machining Data ap ap Feed Feed (Forward (Backward turning turning IC8250 IC8150 IC5010 IC5005 machining) machining) (Forward (Backward IC807 Designation L IC S RE D1 (mm) (mm) machining) machining) Q3-MCMT160608-R3P-SL 36.60 16.00 6.15 0.80 5.40 • • • • • 1.50-7.50 0.50-4.00 0.30-0.60 0.20-1.20 NEW • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: C#-Q3-SMXCN-SL-Y (10) • C#-Q3-SMXCR/L-SL (10) • Q3-SMXCN-SL-JHP (9) • Q3-SMXCR/L-SL-JHP (3) 80° 95° 95º WNGP-F2P L 95° Double-Sided Trigon Inserts for Super Finish Machining Conditions on Alloyed Steel RE IC S Dimensions Recommended Machining Data IC530N ap f Designation L IC S RE (mm) (mm/rev) WNGP 040302R/L-F2P 4.35 6.35 3.18 0.20 • 0.30-2.00 0.08-0.30 WNGP 040304R/L-F2P 4.35 6.35 3.18 0.40 • 0.30-2.00 0.08-0.30 WNGP 040308R/L-F2P 4.35 6.35 3.18 0.80 • 0.30-2.00 0.08-0.30 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/E-SWLNR/L-04 (135) • NQCH-SWLNR/L-S-JHP (11) • PWLNR/L-S (11) 80° 95° 95º WNMG-F3P L 95° Double-Sided Trigon Inserts for Semi-Finishing and Finishing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data IC520N ap f IC8250 IC8150 IC20N IC830 IC807 Designation L IC S RE (mm) (mm/rev) WNMG 060404-F3P 6.52 9.52 4.76 0.40 • • • • • • 0.50-2.50 0.07-0.25 WNMG 060408-F3P 6.52 9.52 4.76 0.80 • • • • • • 0.90-3.00 0.08-0.25 WNMG 060412-F3P 6.52 9.52 4.76 1.20 • • • • 1.30-3.00 0.10-0.25 WNMG 080404-F3P 8.70 12.70 4.76 0.40 • • • • 0.50-3.50 0.07-0.25 WNMG 080408-F3P 8.70 12.70 4.76 0.80 • • • • 0.90-3.50 0.08-0.25 WNMG 080412-F3P 8.70 12.70 4.76 1.20 • • • • 1.30-3.50 0.10-0.25 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16)• S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 172 ISCAR
