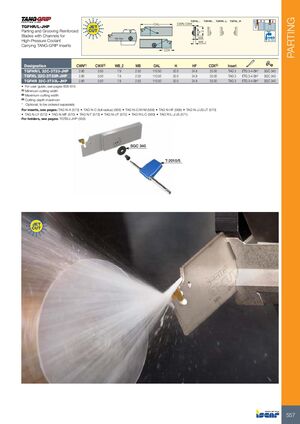

PARTING TGFHL... TGFHR... TGFHR...L TGFHL...R OAL CWN-CWX TGFHR/L-JHP Parting and Grooving Reinforced HF H Blades with Channels for WB Min Max High-Pressure Coolant WB_2 Bar Max Carrying TANG-GRIP Inserts CDX Designation CWN(1) CWX(2) WB_2 WB OAL H HF CDX(3) Insert TGFHR/L 32C-3T33-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340 TGFHL 32C-3T33R-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340 TGFHR 32C-3T33L-JHP 2.80 3.50 7.9 2.50 110.50 32.0 24.8 33.00 TAG 3 ETG 3-4-SH* SGC 340 • For user guide, see pages 606-615 (1) Minimum cutting width (2) Maximum cutting width (3) Cutting depth maximum * Optional, to be ordered separately For inserts, see pages: TAG N-A (573) • TAG N-C (full radius) (569) • TAG N-C/W/M (568) • TAG N-HF (568) • TAG N-J/JS/JT (570) • TAG N-LF (572) • TAG N-MF (570) • TAG N-T (573) • TAG N-UT (572) • TAG R/L-C (569) • TAG R/L-J/JS (571) For holders, see pages: TGTBU-JHP (559) SGC 340 T-2010/5 557
