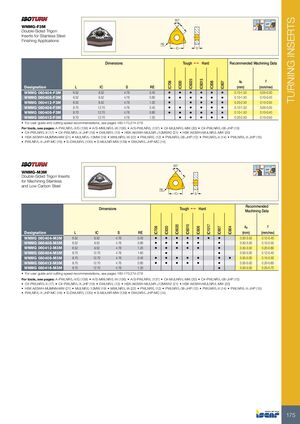

TURNING INSERTS 80° 95° 95º WNMG-F3M L 95° Double-Sided Trigon Inserts for Stainless Steel Finishing Applications RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC6025 IC6015 IC706 IC830 IC806 IC807 Designation L IC S RE (mm) (mm/rev) WNMG 060404-F3M 6.52 9.52 4.76 0.40 • • • • • • 0.10-1.50 0.05-0.30 WNMG 060408-F3M 6.52 9.52 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.40 WNMG 060412-F3M 6.52 9.52 4.76 1.20 • • • • • 0.20-2.50 0.15-0.50 WNMG 080404-F3M 8.70 12.70 4.76 0.40 • • • • • • 0.10-1.50 0.05-0.30 WNMG 080408-F3M 8.70 12.70 4.76 0.80 • • • • • • 0.10-1.50 0.10-0.40 WNMG 080412-F3M 8.70 12.70 4.76 1.20 • • • • • 0.20-2.50 0.15-0.50 • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 80° 95° 95º WNMG-M3M L 95° Double-Sided Trigon Inserts for Machining Stainless and Low Carbon Steel RE IC S Recommended Dimensions Tough 1 Hard Machining Data ap f IC6025 IC6015 IC1017 IC706 IC830 IC806 IC807 IC804 Designation L IC S RE (mm) (mm/rev) WNMG 060404-M3M 6.52 9.52 4.76 0.40 • • • • • • • 0.50-3.50 0.12-0.40 WNMG 060408-M3M 6.52 9.52 4.76 0.80 • • • • • • 0.50-3.50 0.15-0.50 WNMG 060412-M3M 6.52 9.52 4.76 1.20 • • • • • • 0.50-3.50 0.20-0.60 WNMG 080404-M3M 8.70 12.70 4.76 1.60 • • 0.50-5.00 0.12-0.40 WNMG 080408-M3M 8.70 12.70 4.76 0.40 • • • • • • • 0.50-5.00 0.15-0.50 WNMG 080412-M3M 8.70 12.70 4.76 0.80 • • • • • • 0.50-5.00 0.20-0.60 WNMG 080416-M3M 8.70 12.70 4.76 1.20 • 0.50-5.00 0.25-0.70 • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: A-PWLNR/L-X/G (138) • A/S-MWLNR/L-W (136) • A/S-PWLNR/L (137) • C#-MULNR/L-MW (20) • C#-PWLNR/L-08-JHP (13) • C#-PWLNR/L-X (17) • C#-PWLNR/L-X-JHP (18) • DWLNR/L (13) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • MWLNR/L-W (22) • PWLNR/L (12) • PWLNR/L-08-JHP (12) • PWLNR/L-X (14) • PWLNR/L-X-JHP (15) • PWLNR/L-X-JHP-MC (16) • S-DWLNR/L (130) • S-MULNR-MW (139) • DWLNR/L-JHP-MC (14) 175
