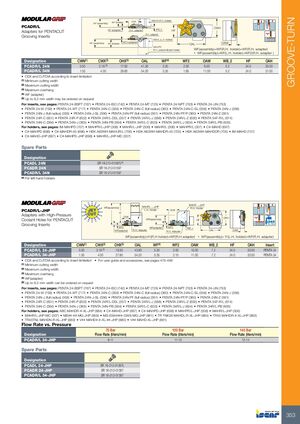

Токарные инструменты Iscar (часть 1) 2026 - страница 355

GROOVE-TURN OHX MAHR (R.H. holder) WF (assembly) WF (holder) PCADR/L OAH WF (adapter) WB_2 Adapters for PENTACUT R.H. adapter HF R.H. adapter Grooving Inserts MAHL (L.H. holder) WF (assembly) WF2 (adapter) OAW WF (holder) OAL MAHPR (R.H. perpendicular holder) WF(assembly)=WF(R.H. holder)+WF(R.H. adapter) • WF(assembly)=WF(L.H. holder)+WF2(R.H. adapter ) Designation CWN(1) CWX(2) OHX(3) OAL WF(4) WF2 OAW WB_2 HF OAH PCADR/L 24N 0.50 3.18 (5) 17.00 41.50 3.20 2.00 9.00 5.2 24.0 30.30 PCADR/L 34N 1.50 4.00 29.60 54.20 3.35 1.85 11.00 5.2 24.0 31.00 • CDX and CUTDIA according to insert limitation (1) Minimum cutting width (2) Maximum cutting width (3) Maximum overhang (4) WF (adapter) (5) Up to 6.2 mm width may be ordered on request For inserts, see pages: PENTA 24-BSPT (767) • PENTA 24-ISO (742) • PENTA 24-MT (725) • PENTA 24-NPT (763) • PENTA 24-UN (753) • PENTA 24-W (759) • PENTA 24-WT (717) • PENTA 24N-C (359) • PENTA 24N-C (full radius) (360) • PENTA 24N-C-SL (356) • PENTA 24N-J (358) • PENTA 24N-J (full radius) (359) • PENTA 24N-J-SL (356) • PENTA 24N-PF (full radius) (361) • PENTA 24N-PF/P (360) • PENTA 24N-Z (361) • PENTA 24R-C (601) • PENTA 24R-P (602) • PENTA 24R/L-DSL (357) • PENTA 24R/L-J (598) • PENTA 24R/L-Z (600) • PENTA 34F-R/L (674) • PENTA 34N-C (364) • PENTA 34N-J (365) • PENTA 34N-PB (364) • PENTA 34R/L-C (603) • PENTA 34R/L-J (604) • PENTA 34R/L-PB (605) For holders, see pages: IM-MAHPD (707) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L (306) • MAHPR/L (307) • C#-MAHD (697) • C#-MAHPD (698) • C#-MAHDR-45 (696) • HSK A63WH-MAHUR/L (706) • HSK A63WH-MAHDR-45 (705) • HSK A63WH-MAHDOR (705) • IM-MAHD (707) • C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • MAHR/L-JHP-MC (307) Spare Parts Designation PCADL 24N SR 16-212-01397L(a) PCADR 24N SR 16-212-01397 PCADR/L 34N SR 16-212-01397 (a) For left-hand holders MAHR ...-JHP WF(assembly) MAHPL ...-JHP R.H. Holder PCADR/L-JHP L.H. Holder OHX f1 Adapters with High-Pressure OHX OAH Coolant Holes for PENTACUT WF(assembly) f1 HF Grooving Inserts Bar Max WF2 WF(adapter) WF2 WB_2 WF(adapter) R.H. Adapter OAL OAW R.H. Adapter WF(assembly)=f1(R.H holder)+WF(R.H adapter) • WF(assembly)= f1(L.H. holder)+WF(R.H. adapter) Designation CWN(1) CWX(2) OHX(3) OAL WF(4) WF2 OAW WB_2 HF OAH Insert PCADR/L 24-JHP 0.50 3.18 (5) 19.30 43.80 5.20 2.00 10.00 7.2 24.0 33.00 PENTA 24 PCADR/L 34-JHP 1.50 4.00 27.80 54.20 5.35 2.15 11.00 7.2 24.0 33.00 PENTA 34 • CDX and CUTDIA according to insert limitation • For user guide and accessores, see pages 475-496 (1) Minimum cutting width (2) Maximum cutting width (3) Maximum overhang (4) WF(adapter) (5) Up to 6.2 mm width can be ordered on request For inserts, see pages: PENTA 24-BSPT (767) • PENTA 24-ISO (742) • PENTA 24-MT (725) • PENTA 24-NPT (763) • PENTA 24-UN (753) • PENTA 24-W (759) • PENTA 24-WT (717) • PENTA 24N-C (359) • PENTA 24N-C (full radius) (360) • PENTA 24N-C-SL (356) • PENTA 24N-J (358) • PENTA 24N-J (full radius) (359) • PENTA 24N-J-SL (356) • PENTA 24N-PF (full radius) (361) • PENTA 24N-PF/P (360) • PENTA 24N-Z (361) • PENTA 24R-C (601) • PENTA 24R-P (602) • PENTA 24R/L-DSL (357) • PENTA 24R/L-J (598) • PENTA 24R/L-Z (600) • PENTA 34F-R/L (674) • PENTA 34N-C (364) • PENTA 34N-J (365) • PENTA 34N-PB (364) • PENTA 34R/L-C (603) • PENTA 34R/L-J (604) • PENTA 34R/L-PB (605) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • MAHPR/L-JHP (308) • MAHR/L-JHP (306) • MAHR/L-JHP-MC (307) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) Flow Rate vs. Pressure 7070Bar Bar 100 Bar 100 Bar 140 Bar 140 Bar Designation Flow FlowRate Rate(liters/min) (liters/min) FlowFlow Rate Rate (liters/min) (liters/min) Flow Rate Flow (liters/min) Rate (liters/min) PCADR/L 24-JHP 9-11 9-11 11-1311-13 12-14 12-14 Spare Parts Designation PCADL 24-JHP SR 16-212-01397L PCADR 24-JHP SR 16-212-01397 PCADR/L 34-JHP SR 16-212-01397 353
