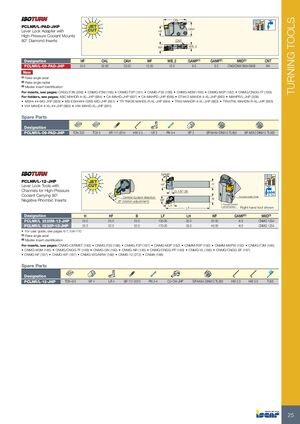

TURNING TOOLS OAL 95º PCLNR/L-PAD-JHP OAH 95º Lever Lock Adapter with HF High-Pressure Coolant Mounts 80° Diamond Inserts CNT WF WB_2 Designation HF OAL OAH WF WB_2 GAMP(1) GAMF(2) MIID(3) CNT PCLNR/L-09-PAD-JHP 24.0 52.80 33.00 15.00 10.0 6.0 6.0 CNG/CNM 0904/0906 M4 New (1) Rake angle axial (2) Rake angle radial (3) Master insert identification For inserts, see pages: CNGG-F3N (266) • CNMG-F3M (185) • CNMG-F3P (181) • CNMG-F3S (186) • CNMG-M3M (185) • CNMG-M3P (182) • CNMG/CNGG-TF (189) For holders, see pages: ABC MAHDR-#-XL-JHP (884) • C#-MAHD-JHP (697) • C#-MAHPD-JHP (698) • DT##/2 MAHD#-#-XL-JHP (860) • MAHPR/L-JHP (308) • MS##-##-MG-JHP (859) • MS-ES#####-GWS-MG-JHP (861) • TR TNK36 MAHDL-R-XL-JHP (884) • TR45 MAHDR-#-XL-JHP (883) • TR45TNL MAHDN-R-XL-JHP (883) • V## MAHD#-#-XL-##-JHP (880) • V## MAHD-XL-JHP (881) Spare Parts Designation PCLNR/L-09-PAD-JHP TCN 323 TCX 3 SR 117-2014 HW 2.5 LR 3 PN 3-4 SP 3 SR M4X4 DIN913 TL360 SR M3X3 DIN913 TL360 GAMP 95º PCLNR/L-12-JHP HF H 95º Lever Lock Tools with Channels for High-Pressure G 1/8"-28 4° Coolant Carrying 80° Central coolant direction Frontal coolant hole Bar Max 4° B Negative Rhombic Inserts (8° rotation adjustment) WF Frontal coolant LH on/off screw LF Right hand tool shown Designation H HF B LF LH WF GAMP(1) MIID(2) PCLNR/L 2525M-12-JHP 25.0 25.0 25.0 150.00 33.0 32.00 -6.0 CNMG 1204 PCLNR/L 3232P-12-JHP 32.0 32.0 32.0 170.00 33.0 40.00 -6.0 CNMG 1204 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Master insert identification For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) • CNMA (188) Spare Parts Designation PCLNR/L-12-JHP TCN 423 SP 4 LR 4 SR 117-2010 PN 3-4 CU-CW-JHP SR M4X4 DIN913 TL360 HW 2.0 HW 3.0 T-8/5 25
