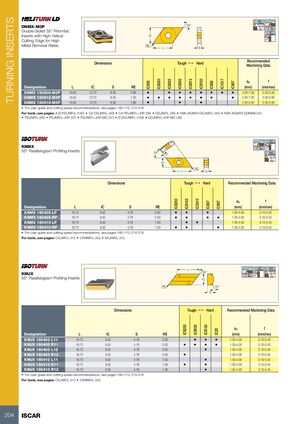

TURNING INSERTS 60° 93º-95º MAX 55° DNMX-M3P 62.5º 30º MAX Double-Sided 55° Rhombic 27° MAX Inserts with High Helical IC 93° Cutting Edge for High Metal Removal Rates RE S L Recommended Dimensions Tough 1 Hard Machining Data ap f IC8350 IC6025 IC8250 IC6015 IC8150 IC1017 IC830 IC806 IC807 Designation L IC S RE (mm) (mm/rev) DNMX 150608-M3P 15.50 12.70 6.35 0.80 • • • • • • • • 2.00-7.00 0.25-0.50 DNMX 150612-M3P 15.50 12.70 6.35 1.20 • • • • • • • • 2.50-7.00 0.30-0.60 DNMX 150616-M3P 15.50 12.70 6.35 1.60 • • • 2.50-5.50 0.30-0.60 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PDUNR/L (140) • C#-DDJNR/L (40) • C#-PDJNR/L-JHP (38) • DDJNR/L (39) • HSK A63WH-DDJNR/L (40) • HSK A63WH-DDNNN (41) • PDJNR/L (36) • PDJNR/L-JHP (37) • PDJNR/L-JHP-MC (37) • S-DDUNR/L (139) • DDJNR/L-JHP-MC (39) 27° 93º-95º MAX KNMX 30º MAX 93° 55° Parallelogram Profiling Inserts 55˚ 60° 7˚ MAX 62.5º IC RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8250 IC8150 IC5010 IC807 IC907 Designation L IC S RE (mm) (mm/rev) KNMX 160405-LP 19.72 9.52 4.76 0.50 • • • 1.00-4.00 0.10-0.40 KNMX 160405-RP 19.72 9.52 4.76 0.50 • • • • 1.00-4.00 0.10-0.40 KNMX 160410-LP 19.72 9.52 4.76 1.00 • • 1.50-4.00 0.15-0.45 KNMX 160410-RP 19.72 9.52 4.76 1.00 • • • 1.50-4.00 0.15-0.45 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: CKJNR/L (41) • CKNNR/L (42) • SKJNR/L (41) 27° 60° L 93º-95º MAX MAX 55° KNUX 30º MAX 93° 62.5º 55° Parallelogram Profiling Inserts IC RE 12° S Dimensions Tough 1 Hard Recommended Machining Data IC8250 IC9025 IC8150 ap f IC20 Designation L IC S RE (mm) (mm/rev) KNUX 160405 L11 19.72 9.52 4.76 0.50 • • • 1.00-4.00 0.10-0.40 KNUX 160405 R11 19.72 9.52 4.76 0.50 • • • • 1.00-4.00 0.10-0.40 KNUX 160405 L12 19.72 9.52 4.76 0.50 • 1.50-4.00 0.10-0.40 KNUX 160405 R12 19.72 9.52 4.76 0.50 • 1.50-4.00 0.10-0.40 KNUX 160410 L11 19.72 9.52 4.76 1.00 • 1.50-4.00 0.15-0.45 KNUX 160410 R11 19.72 9.52 4.76 1.00 • • 1.50-4.00 0.15-0.45 KNUX 160410 R12 19.72 9.52 4.76 1.00 • 1.50-4.00 0.15-0.45 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: CKJNR/L (41) • CKNNR/L (42) 204 ISCAR
