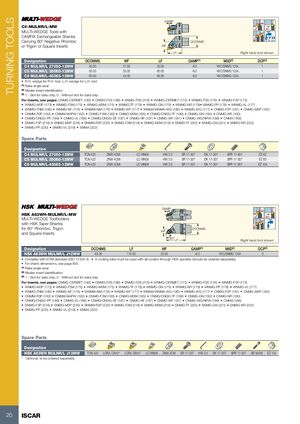

TURNING TOOLS GAMP 95° C#-MULNR/L-MW 95° 75º MULTI-WEDGE Tools with 95º CAMFIX Exchangeable Shanks 70 Carrying 80° Negative Rhombic DCONMS 95º Bar Max or Trigon or Square Inserts WF LF Right hand tool shown Designation DCONMS WF LF GAMP(1) MIID(2) DCP(3) C4 MULNR/L 27050-12MW 40.00 27.00 50.00 -6.0 W/C/SNMG 1204.. 1 C5 MULNR/L 35060-12MW 50.00 35.00 60.00 -6.0 W/C/SNMG 1204.. 1 C6 MULNR/L-45065-12MW 63.00 45.00 65.00 -6.0 W/C/SNMG 1204.. 1 • R.H. wedge for R.H. tool, L.H. wedge for L.H. tool (1) Rake angle axial (2) Master insert identification (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • SNMG-F3S (219) • WNMG-CERMET (173) • WNMG-F3S (176) • WNMG-F3P (172) • WNMG-M3P (173) • WNMG-F3M (175) • WNMG-M3M (175) • WNMG-TF (178) • WNMG-GN (179) • WNMG-NR (179)• WNMG-PP (178) • WNMG-VL (177) • WNMG-TNM (180) • WNMG-NF (176) • WNMM-NM (179) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMA (188) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) Spare Parts Designation C4 MULNR/L 27050-12MW TCN 423 ZNW 4CMI LC WN08 HW 3.0 SR 17-307 DK 17-307 SPR 17-307 EZ 62 C5 MULNR/L 35060-12MW TCN 423 ZNW 4CMI LC WN08 HW 3.0 SR 17-307 DK 17-307 SPR 17-307 EZ 83 C6 MULNR/L-45065-12MW TCN 423 ZNW 4CMI LC WN08 HW 3.0 SR 17-307 DK 17-307 SPR 17-307 EZ 104 GAMP 95° HSK A63WH-MULNR/L-MW 95° 75º MULTI-WEDGE Toolholders 95º with HSK Taper Shanks for 80° Rhombic, Trigon DCONMS 95º WF and Square Inserts 80° LF Right hand tool shown Designation DCONMS LF WF GAMP(1) MIID(2) DCP(3) HSK A63WH MULNR/L J12MW 63.00 110.00 25.00 -6.0 W/C/SNMG 1204 0 • Complies with ICTM standard (ISO 12164-3) • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) • For shank dimensions, see page 835 (1) Rake angle axial (2) Master insert identification (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • SNMG-F3S (219) • WNMG-CERMET (173) • WNMG-F3S (176) • WNMG-F3P (172) • WNMG-M3P (173) • WNMG-F3M (175) • WNMG-M3M (175) • WNMG-TF (178) • WNMG-GN (179) • WNMG-NR (179) • WNMG-PP (178) • WNMG-VL (177) • WNMG-TNM (180) • WNMG-NF (176) • WNMM-NM (179) • WNMG-WF (177) • WNMA/WNMA-WG (180) • WNMG-WG (177) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMA (188) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) Spare Parts Designation HSK A63WH MULNR/L J12MW TCN 423 LCR/L CN12* LCR/L SN12* LC WN08 ZNW 4CM SR 17-307 HW 3.0 DK 17-307 SPR 17-307 SR M4X8 EZ 104 * Optional, to be ordered separately 20 ISCAR
