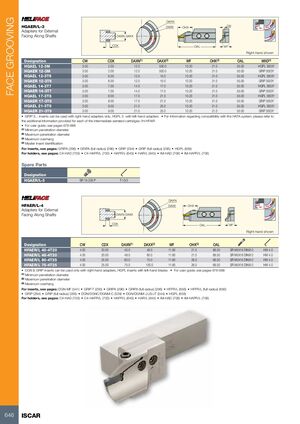

Токарные инструменты Iscar (часть 1) 2026 - страница 648

FACE GROOVING DAXN HGAER/L-3 DAXX OHX CW Adapters for External Facing Along Shafts DAXN-DAXX CDX OAL WF Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF OHX(3) OAL MIID(4) HGAEL 12-3M 3.00 2.00 12.0 500.0 10.20 21.0 55.00 HGPL 3003Y HGAER 12-3M 3.00 2.00 12.0 500.0 10.20 21.0 55.00 GRIP 3003Y HGAEL 12-3T6 3.00 6.00 12.0 15.0 10.20 21.0 55.00 HGPL 3003Y HGAER 12-3T6 3.00 6.00 12.0 15.0 10.20 21.0 55.00 GRIP 3003Y HGAEL 14-3T7 3.00 7.00 14.0 17.0 10.20 21.0 55.00 HGPL 3003Y HGAER 14-3T7 3.00 7.00 14.0 17.0 10.20 21.0 55.00 GRIP 3003Y HGAEL 17-3T8 3.00 8.00 17.0 21.0 10.20 21.0 55.00 HGPL 3003Y HGAER 17-3T8 3.00 8.00 17.0 21.0 10.20 21.0 55.00 GRIP 3003Y HGAEL 21-3T9 3.00 9.00 21.0 25.0 10.20 21.0 55.00 HGPL 3003Y HGAER 21-3T9 3.00 9.00 21.0 25.0 10.20 21.0 55.00 GRIP 3003Y • GRIP 3... inserts can be used with right-hand adapters only, HGPL 3 with left-hand adapters • For information regarding compatibility with the HATA system, please refer to the additional information provided for each of the intermediate serrated cartridges: IH-HFAIR • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang (4) Master insert identification For inserts, see pages: GRIPA (296) • GRIPA (full radius) (296) • GRIP (294) • GRIP (full radius) (295) • HGPL (658) For holders, see pages: C#-HAD (700) • C#-HAPR/L (700) • HAPR/L (645) • HAR/L (645) • IM-HAD (708) • IM-HAPR/L (708) Spare Parts Designation HGAER/L-3 SR 16-236 P T-15/3 DAXN HFAER/L-4 DAXX OHX Adapters for External Facing Along Shafts DAXN-DAXX CDX OAL WF Right-hand shown Designation CW CDX DAXN(1) DAXX(2) WF OHX(3) OAL HFAER/L 40-4T20 4.00 20.00 40.0 48.0 11.60 21.0 68.50 SR M5X16 DIN912 HW 4.0 HFAER/L 48-4T20 4.00 20.00 48.0 60.0 11.60 21.0 68.50 SR M5X16 DIN912 HW 4.0 HFAER/L 60-4T25 4.00 25.00 60.0 75.0 11.60 26.0 68.50 SR M5X16 DIN912 HW 4.0 HFAER/L 75-4T25 4.00 25.00 75.0 100.0 11.60 26.0 68.50 SR M5X16 DIN912 HW 4.0 • DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades • For user guide, see pages 676-688 (1) Minimum penetration diameter (2) Maximum penetration diameter (3) Maximum overhang For inserts, see pages: DGN-MF (541) • GRIP-T (295) • GRIPA (296) • GRIPA (full radius) (296) • HFPR/L (656) • HFPR/L (full radius) (656) • GRIP (294) • GRIP (full radius) (295) • DGN/DGNC/DGNM-C (539) • DGN/DGNM-J/JS/JT (544) • HGPL (658) For holders, see pages: C#-HAD (700) • C#-HAPR/L (700) • HAPR/L (645) • HAR/L (645) • IM-HAD (708) • IM-HAPR/L (708) 646 ISCAR
