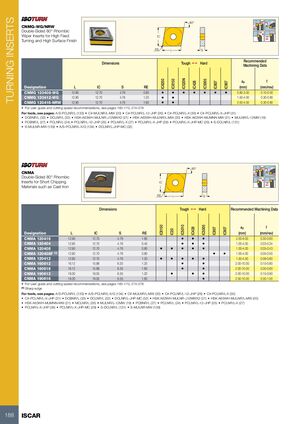

TURNING INSERTS 80° 95º CNMG-WG/NRW 95º 95º Double-Sided 80° Rhombic 75° Wiper Inserts for High Feed IC 75º Turning and High Surface Finish RE L S Recommended Dimensions Tough 1 Hard Machining Data IC520N ap f IC8250 IC8150 IC5005 IC428 IC807 IC907 Designation L IC S RE (mm) (mm/rev) CNMG 120408-WG 12.90 12.70 4.76 0.80 • • • • • • • 0.80-3.50 0.10-0.50 CNMG 120412-WG 12.90 12.70 4.76 1.20 • • 1.50-4.00 0.30-0.80 CNMG 120416-NRW 12.90 12.70 4.76 1.60 • • 2.00-4.50 0.30-0.80 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: A/S-PCLNR/L (133) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) • A/S-PCLNR/L-X/G (134) • DCLNR/L-JHP-MC (32) 80° 95º CNMA 95º 95º Double-Sided 80° Rhombic 75° Inserts for Short Chipping IC 75º Materials such as Cast Iron RE L S Dimensions Tough 1 Hard Recommended Machining Data ap f IC8150 IC5010 IC5005 IC428 IC807 IC907 IC20 Designation L IC S RE (mm) (mm/rev) CNMA 120416 12.90 12.70 4.76 1.60 • • • 2.00-6.00 0.30-0.60 CNMA 120404 12.90 12.70 4.76 0.40 • • • 1.00-4.00 0.03-0.34 CNMA 120408 12.90 12.70 4.76 0.80 • • • • • 1.00-4.00 0.05-0.43 CNMA 120408F (1) 12.90 12.70 4.76 0.80 • • 1.00-4.00 0.05-0.50 CNMA 120412 12.90 12.70 4.76 1.20 • • • • • 1.50-4.50 0.08-0.60 CNMA 160612 16.12 15.88 6.35 1.20 • • 2.00-10.00 0.10-0.80 CNMA 160616 16.12 15.88 6.35 1.60 • • 2.00-10.00 0.30-0.60 CNMA 190612 19.30 19.05 6.35 1.20 • • • 2.00-10.00 0.10-0.80 CNMA 190616 19.30 19.05 6.35 1.60 • 2.50-10.00 0.30-1.00 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 (1) Sharp edge For tools, see pages: A/S-PCLNR/L (133) • A/S-PCLNR/L-X/G (134) • C#-MULNR/L-MW (20) • C#-PCLNR/L-12-JHP (26) • C#-PCLNR/L-X (30) • C#-PCLNR/L-X-JHP (31) • DCBNR/L (33) • DCLNR/L (32) • DCLNR/L-JHP-MC (32) • HSK A63WH-MULNR-J12MWX2 (21) • HSK A63WH-MULNR/L-MW (20) • HSK A63WH-MUMNN-MW (21) • MCLNR/L (26) • MULNR/L-12MW (19) • PCBNR/L (27) • PCLNR/L (24) • PCLNR/L-12-JHP (25) • PCLNR/L-X (27) • PCLNR/L-X-JHP (28) • PCLNR/L-X-JHP-MC (29) • S-DCLNR/L (131) • S-MULNR-MW (139) 188 ISCAR
