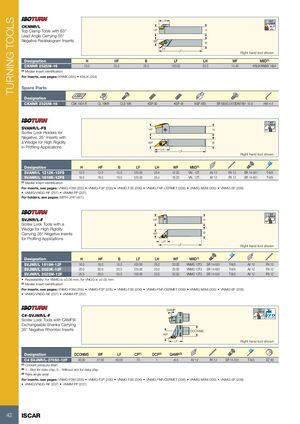

TURNING TOOLS LH 60° MAX CKNNR/L 62.5º Top Clamp Tools with 63° HF H Lead Angle Carrying 55° Negative Parallelogram Inserts WF B 75˚ LF Right hand tool shown Designation H HF B LF LH WF MIID(1) CKNNR 2525M-16 25.0 25.0 25.0 150.00 33.0 14.40 KNUX/KNMX 1604 (1) Master insert identification For inserts, see pages: KNMX (204) • KNUX (204) Spare Parts Designation CKNNR 2525M-16 CSK 1604 R CL 16KR CLS 16K KSP 90 KSP 48 KSP 48S SR M3X0.5X10DIN7991 10.9 HW 4.0 50° MAX SVANR/L-FS HF H 93° Screw Lock Holders for Negative, 35° Inserts with a Wedge for High Rigidity WF B in Profiling Applications LH LF Right hand tool shown Designation H HF B LF LH WF MIID(1) SVANR/L 1212K-12FS 12.0 12.0 12.0 125.00 25.4 12.20 VN.. 12T.. AV 12 PA 12 SR 14-551 T-9/5 SVANR/L 1616K-12FS 16.0 16.0 16.0 125.00 25.4 16.20 VN.. 12T.. AV 12 PA 12 SR 14-551 T-9/5 (1) Master insert identification For inserts, see pages: VNMG-F3M (205) • VNMG-F3P (205) • VNMG-F3S (206) • VNMG-FNF-CERMET (206) • VNMG-M3M (205) • VNMG-SF (206) • VNMG/VNGG-NF (207) • VNMM-PP (207) For holders, see pages: SBTH-JHP (421) 50° MAX SVJNR/L-F HF H 93° Screw Lock Tools with a Wedge for High Rigidity B Carrying 35° Negative Inserts WF for Profiling Applications LH LF Right hand tool shown Designation H HF B LF LH WF MIID(1) SVJNR/L 1616H-12F 16.0 16.0 16.0 100.00 25.0 20.00 VNMG 12T3 SR 14-551 T-9/5 AV 12 PA 12 SVJNR/L 2020K-12F 20.0 20.0 20.0 125.00 25.0 25.00 VNMG 12T3 SR 14-551 T-9/5 AV 12 PA 12 SVJNR/L 2525M-12F 25.0 25.0 25.0 150.00 25.0 32.00 VNMG 12T3 SR 14-551 T-9/5 AV 12 PA 12 • Repeatability: for VNMG is ±0.06 mm, for VNGG is ±0.02 mm (1) Master insert identification For inserts, see pages: VNMG-F3M (205) • VNMG-F3P (205) • VNMG-F3S (206) • VNMG-FNF-CERMET (206) • VNMG-M3M (205) • VNMG-SF (206) • VNMG/VNGG-NF (207) • VNMM-PP (207) GAMP 50° MAX C#-SVJNR/L-F 93° 70 Bar Max Screw Lock Tools with CAMFIX Exchangeable Shanks Carrying 35° Negative Rhombic Inserts DCONMS WF LF Right hand tool shown Designation DCONMS WF LF CP(1) DCP(2) GAMP(3) C4 SVJNR/L-27050-12F 40.00 27.00 50.00 70 1 -6.0 AV 12 PA 12 SR 14-551 T-9/5 EZ 83 (1) Coolant pressure (Bar) (2) 1 - Slot for data chip, 0 - Without slot for data chip (3) Rake angle axial For inserts, see pages: VNMG-F3M (205) • VNMG-F3P (205) • VNMG-F3S (206) • VNMG-FNF-CERMET (206) • VNMG-M3M (205) • VNMG-SF (206) • VNMG/VNGG-NF (207) • VNMM-PP (207) 42 ISCAR
