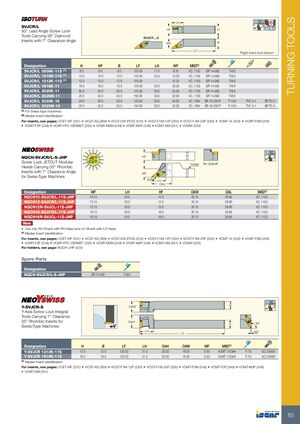

TURNING TOOLS 50° 105° LH MAX SVJCR/L 93° HF H 93° Lead Angle Screw Lock Tools Carrying 35° Diamond SVJCR ...S Inserts with 7° Clearance Angle B WF LF Right hand tool shown Designation H HF B LF LH WF MIID(2) SVJCR/L 0808K-11S (1) 8.0 8.0 8.0 125.00 11.5 8.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1010K-11S (1) 10.0 10.0 10.0 125.00 22.0 10.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1212K-11S (1) 12.0 12.0 12.0 125.00 - 12.20 VC..1103 SR 14-560 T-8/5 SVJCR/L 1616K-11 16.0 16.0 16.0 125.00 25.0 20.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2020K-11 20.0 20.0 20.0 125.00 30.0 25.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2525M-11 25.0 25.0 25.0 150.00 30.0 32.00 VC..1103 SR 14-560 T-8/5 SVJCR/L 2020K-16 20.0 20.0 20.0 125.00 30.0 25.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 SVJCR/L 2525M-16 25.0 25.0 25.0 150.00 30.0 32.00 VC..1604 SR 16-236 P T-15/5 TVC 3-1 SR TC-3 (1) For Swiss-type machines (2) Master insert identification For inserts, see pages: VCET-WF (251) • VCGT-AS (269) • VCGT-DW (PCD) (515) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-14 (252) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-FPC-CERMET (250) • VCMT-M3M (249) • VCMT-M3P (248) • VCMT-SM (251) • VCMW (252) 50° MAX NQCH-SVJCR/L-S-JHP HF 93° Screw Lock JETCUT Modular OAW holder Heads Carrying 35° Rhombic Inserts with 7° Clearance Angle WF for Swiss-Type Machines 93º LH OAL Designation WF LH HF OAW OAL MIID(1) NQCH10-SVJCR/L-11S-JHP 10.15 20.0 10.0 20.15 28.80 VC..1103.. NQCH12-SVJCR/L-11S-JHP 12.15 20.0 12.0 20.15 28.80 VC..1103.. NQCH12R-SVJCL-11S-JHP 12.15 20.0 12.0 20.15 28.80 VC..1103.. NQCH16-SVJCR/L-11S-JHP 16.15 20.0 16.0 20.15 28.80 VC..1103.. NQCH16R-SVJCL-11S-JHP 16.15 20.0 16.0 20.15 28.80 VC..1103.. New • Use only RH Shank with RH Head and LH Shank with LH Head (1) Master insert identification For inserts, see pages: VCET-WF (251) • VCGT-AS (269) • VCGT-DW (PCD) (515) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-14 (252) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-FPC-CERMET (250) • VCMT-M3M (249) • VCMT-M3P (248) • VCMT-SM (251) • VCMW (252) For holders, see page: NQCH-JHP (424) Spare Parts Designation NQCH-SVJCR/L-S-JHP SR 14-560 T-8/5 50° MAX B Y-SVJCR-S OAW 93° Y-Axis Screw Lock Integral Tools Carrying 7° Clearance 35° Rhombic Inserts for OAH 93˚ H Swiss-Type Machines LH WF LF Designation H B LF LH OAH OAW WF MIID(1) Y-SVJCR 1212K-11S 12.0 12.0 125.00 21.0 20.00 16.00 0.00 VCMT 1103## T-7/5 SO 250651 Y-SVJCR 1616K-11S 16.0 16.0 125.00 21.0 20.00 16.00 0.00 VCMT 1103## T-7/5 SO 250651 (1) Master insert identification For inserts, see pages: VCET-WF (251) • VCGT-AS (269) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-SM (251) 85
