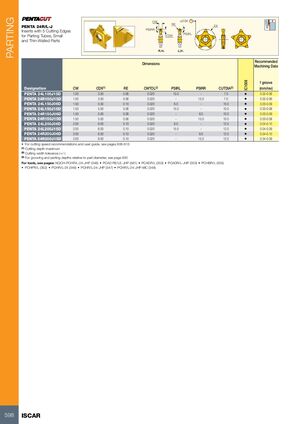

PARTING CW ±0.04 RE 24 PENTA 24R/L-J PSIRR Inserts with 5 Cutting Edges PSIRL for Parting Tubes, Small CDX and Thin-Walled Parts R.H. L.H. Recommended Dimensions Machining Data f groove IC1008 Designation CW CDX(1) RE CWTOL(2) PSIRL PSIRR CUTDIA(3) (mm/rev) PENTA 24L100J15D 1.00 3.50 0.06 0.020 15.0 - 7.0 • 0.02-0.06 PENTA 24R100J15D 1.00 3.50 0.06 0.020 - 15.0 7.0 • 0.02-0.06 PENTA 24L150J06D 1.50 5.00 0.10 0.020 6.0 - 10.0 • 0.03-0.09 PENTA 24L150J15D 1.50 5.00 0.06 0.020 15.0 - 10.0 • 0.03-0.08 PENTA 24R150J06D 1.50 5.00 0.06 0.020 - 6.0 10.0 • 0.03-0.09 PENTA 24R150J15D 1.50 5.00 0.06 0.020 - 15.0 10.0 • 0.03-0.08 PENTA 24L200J06D 2.00 6.00 0.10 0.020 6.0 - 12.0 • 0.04-0.10 PENTA 24L200J15D 2.00 6.00 0.10 0.020 15.0 - 12.0 • 0.04-0.09 PENTA 24R200J06D 2.00 6.00 0.10 0.020 - 6.0 12.0 • 0.04-0.10 PENTA 24R200J15D 2.00 6.00 0.10 0.020 - 15.0 12.0 • 0.04-0.09 • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting depth maximum (2) Cutting width tolerance (+/-) (3) For grooving and parting depths relative to part diameter, see page 600 For tools, see pages: NQCH-PCHR/L-24-JHP (348) • PCAD RE/LE-JHP (561) • PCADR/L (353) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-24 (346) • PCHR/L-24-JHP (347) • PCHR/L-24-JHP-MC (348) 598 ISCAR
