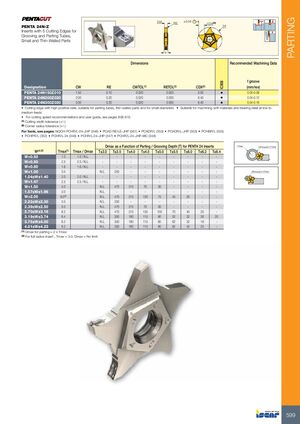

PARTING CW ±0.04 RE CDX(3) PENTA 24N-Z 24 Inserts with 5 Cutting Edges for Grooving and Parting Tubes, Small and Thin-Walled Parts 4 Dimensions Recommended Machining Data f groove IC908 Designation CW RE CWTOL(1) RETOL(2) CDX(3) (mm/rev) PENTA 24N150Z010 1.50 0.10 0.020 0.020 5.00 • 0.05-0.08 PENTA 24N200Z020 2.00 0.20 0.020 0.030 6.40 • 0.04-0.12 PENTA 24N300Z020 3.00 0.20 0.020 0.000 6.40 • 0.04-0.16 • Cutting edge with high positive rake, suitable for parting tubes, thin walled parts and for small diameters • Suitable for machining soft materials and bearing steel at low to medium feeds • For cutting speed recommendations and user guide, see pages 606-615 (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) For tools, see pages: NQCH-PCHR/L-24-JHP (348) • PCAD RE/LE-JHP (561) • PCADR/L (353) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHPR/L (352) • PCHR/L-24 (346) • PCHR/L-24-JHP (347) • PCHR/L-24-JHP-MC (348) Dmax as a Function of Parting / Grooving Depth (T) for PENTA 24 Inserts Tmax ØDmax(CUTDIA) W±0.02 Tmax(1) Tmax / Dmax T≤3.0 T≤3.5 T≤4.0 T≤4.5 T≤5.0 T≤5.5 T≤6.0 T≤6.2 T≤6.4 W=0.50 1�0 1�0 / N�L� - - - - - - - - - W=0.50 2�5 2�5 / N�L� - - - - - - - - - W=0.80 1�6 1�6 / N�L� - - - - - - - - - W=1.00 3�5 N�L� 250 - - - - - - - ØDmax(CUTDIA) 1.04≤W≤1.40 2�0 2�0 / N�L� - - - - - - - - - W=1.47 2�5 2�5 / N�L� - - - - - - - - - W=1.50 5�0 N�L� 470 210 70 30 - - - - 1.57≤W≤1.96 3�0 N�L� - - - - - - - - W=2.00 6�0(2) N�L� 470 210 130 75 45 20 - - 2.22≤W≤2.30 3�5 N�L� 250 - - - - - - - 2.39≤W≤2.50 5�0 N�L� 470 210 70 30 - - - - 2.70≤W≤3.18 6�2 N�L� 470 210 135 100 70 40 20 - 3.19≤W≤3.74 6�4 N�L� 350 180 115 80 52 32 26 20 3.75≤W≤4.00 6�2 N�L� 350 180 115 80 62 32 18 - 4.01≤W≤4.23 6�2 N�L� 350 180 115 80 62 42 25 - (1) Dmax for parting = 2 x Tmax (2) For full radius insert , Tmax = 3�0, Dmax = No limit 599
