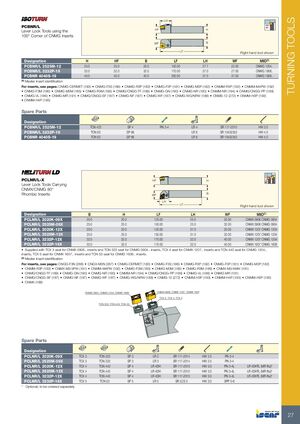

TURNING TOOLS LH PCBNR/L 75º HF H Lever Lock Tools using the 100° Corner of CNMG Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) PCBNR/L 2525M-12 25.0 25.0 25.0 150.00 27.7 22.00 CNMG 1204.. PCBNR/L 3232P-19 32.0 32.0 32.0 170.00 37.0 27.00 CNMG 1906.. PCBNR 4040S-19 40.0 40.0 40.0 250.00 37.0 37.00 CNMG 1906.. (1) Master insert identification For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • CNMG-R3P (182) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG-R3M (186) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMM-NR (194) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG-MR (191) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) • CNMM-H3P (193) • CNMM-H4P (193) Spare Parts Designation PCBNR/L 2525M-12 TCN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 PCBNR/L 3232P-19 TCN 63 SP 66 LR 6 SR 10402352 HW 4.0 PCBNR 4040S-19 TCN 63 SP 66 LR 6 SR 10402352 HW 4.0 95º PCLNR/L-X HF H 95º Lever Lock Tools Carrying CNMX/CNMG 80° Rhombic Inserts WF B LH LF Right hand tool shown Designation B H LF LH WF MIID(1) PCLNR/L 2020K-09X 20.0 20.0 125.00 25.0 25.00 CNMX 0906 CNMG 0904 PCLNR/L 2525M-09X 25.0 25.0 150.00 25.0 32.00 CNMX 0906 CNMG 0904 PCLNR/L 2020K-12X 20.0 20.0 125.00 31.0 25.00 CNMX 1207 CNMG 1204 PCLNR/L 2525M-12X 25.0 25.0 150.00 31.0 32.00 CNMX 1207 CNMG 1204 PCLNR/L 3232P-12X 32.0 32.0 170.00 32.0 40.00 CNMX 1207 CNMG 1204 PCLNR/L 3232P-16X 32.0 32.0 170.00 32.0 40.00 CNMX 1607 CNMG 1606 • Supplied with TCX 3 seat for CNMX 0906.. inserts and TCN 323 seat for CNMG 0904.. inserts, TCX 4 seat for CNMX 1207.. inserts and TCN 443 seat for CNMG 1204.. inserts, TCX 5 seat for CNMX 1607.. inserts and TCN 53 seat for CNMG 1606.. inserts. (1) Master insert identification For inserts, see pages: CNGG-F3N (266) • CNGX-M3N (267) • CNMG-CERMET (183) • CNMG-F3S (186) • CNMG-R3P (182) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMX-M3/4PW (191) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG-R3M (186) • CNMX-M3/4MW (191) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMM-NR (194) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG-MR (191) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) • CNMM-H3P (193) • CNMM-H4P (193) • CNMM-H5P (193) • CNMA (188) CNMG 0904, CNMG 1204, CNMG 1606 CNMX 0906, CNMX 1207, CNMX 1607 TCX 3, TCX 4, TCX 5 TCN 323, TCN 443, TCN 53 Spare Parts Designation PCLNR/L 2020K-09X TCX 3 TCN 323 SP 3 LR 3 SR 117-2014 HW 2.5 PN 3-4 PCLNR/L 2525M-09X TCX 3 TCN 323 SP 3 LR 3 SR 117-2014 HW 2.5 PN 3-4 PCLNR/L 2020K-12X TCX 4 TCN 443 SP 4 LR 4DH SR 117-2010 HW 3.0 PN 3-4L LR 4DHTL (MR INJ)* PCLNR/L 2525M-12X TCX 4 TCN 443 SP 4 LR 4DH SR 117-2010 HW 3.0 PN 3-4L LR 4DHTL (MR INJ)* PCLNR/L 3232P-12X TCX 4 TCN 443 SP 4 LR 4DH SR 117-2010 HW 3.0 PN 3-4L LR 4DHTL (MR INJ)* PCLNR/L 3232P-16X TCX 5 TCN 53 SP 5 LR 5 SR LCS 5 HW 3.0 SPP 5-6 * Optional, to be ordered separately 27
