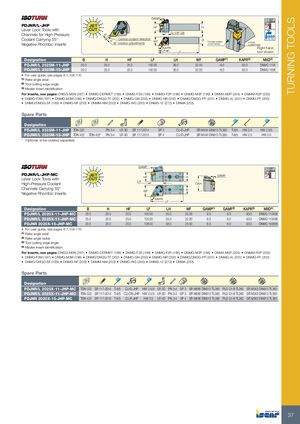

GAMP TURNING TOOLS 27° MAX PDJNR/L-JHP HF H 93° Lever Lock Tools with G 1/8"-28 Channels for High-Pressure 4° Coolant Carrying 55° 4° Central coolant direction WF B Frontal coolant Bar Max (8° rotation adjustment) Frontal Negative Rhombic Inserts on/off screw coolant hole KAPR Right hand LH tool shown LF Designation B H HF LF LH WF GAMP(1) KAPR(2) MIID(3) PDJNR/L 2525M-11-JHP 25.0 25.0 25.0 150.00 36.0 32.00 -6.0 93.0 DNMG 1104 PDJNR/L 2525M-15-JHP 25.0 25.0 25.0 150.00 36.0 32.00 -6.0 93.0 DNMG 1506 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Tool cutting edge angle (3) Master insert identification For inserts, see pages: DNGG-M3N (267) • DNMG-CERMET (199) • DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMG-WG (200) • DNMS-12 (272) • DNMA (203) Spare Parts Designation PDJNR/L 2525M-11-JHP TDN 322 PN 3-4 LR 3D SR 117-2014 SP 3 CU-D-JHP SR M4X4 DIN913 TL360 T-8/5 HW 2.0 HW 2.5/5 PDJNR/L 2525M-15-JHP TDN 422 TDN 432* PN 3-4 LR 4D SR 117-2010 SP 4 CU-D-JHP SR M4X4 DIN913 TL360 T-8/5 HW 2.0 HW 3.0 * Optional, to be ordered separately GAMP 27° MAX PDJNR/L-JHP-MC GAMF 93° HF H Lever Lock Tools with LH High-Pressure Coolant OAH Channels Carrying 55° B WF Negative Rhombic Inserts KAPR LF Designation B H HF LF LH WF GAMP(1) GAMF(2) KAPR(3) MIID(4) PDJNR/L 2020X-11-JHP-MC 20.0 20.0 20.0 105.00 35.0 25.00 6.0 6.0 93.0 DNMG 110408 PDJNR/L 2525X-11-JHP-MC 25.0 25.0 25.0 120.00 35.0 32.00 6.0 6.0 93.0 DNMG 110408 PDJNR 2020X-15-JHP-MC 20.0 20.0 20.0 108.00 38.0 25.00 6.0 6.0 93.0 DNMG 150608 • For user guide, see pages 6-7,104-110 (1) Rake angle axial (2) Rake angle radial (3) Tool cutting edge angle (4) Master insert identification For inserts, see pages: DNGG-M3N (267) • DNMG-CERMET (199) • DNMG-F3S (198) • DNMG-F3P (196) • DNMG-M3P (196) • DNMX-M3P (204) • DNMM-R3P (203) • DNMG-F3M (197) • DNMG-M3M (198) • DNMG/DNGG-TF (202) • DNMG-GN (202) • DNMG-NR (202) • DNMG/DNGG-PP (201) • DNMG-VL (201) • DNMG-PF (200) • DNMG/DNGG-SF (199) • DNMG-NF (200) • DNMM-NM (203) • DNMG-WG (200) • DNMS-12 (272) • DNMA (203) Spare Parts Designation PDJNR/L 2020X-11-JHP-MC TDN 322 SR 117-2014 T-8/5 CU-D-JHP HW 2.5/5 LR 3D PN 3-4 SP 3 SR M6X6 DIN913 TL360 PLG G1/8 TL360 SR M3X3 DIN913 TL360 PDJNR/L 2525X-11-JHP-MC TDN 322 SR 117-2014 T-8/5 CU-CW-JHP HW 2.5/5 LR 3D PN 3-4 SP 3 SR M6X6 DIN913 TL360 PLG G1/8 TL360 SR M3X3 DIN913 TL360 PDJNR 2020X-15-JHP-MC TDN 422 SR 117-2010 T-8/5 CU-R-JHP HW 2.0 LR 4D PN 3-4 SP 4 SR M6X6 DIN913 TL360 PLG G1/8 TL360 SR M3X3 DIN913 TL360 37
