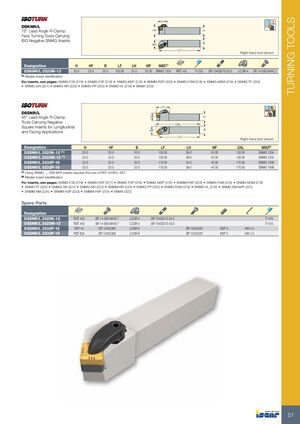

TURNING TOOLS LH 75º DSKNR/L 75° Lead Angle R-Clamp HF H Face Turning Tools Carrying ISO Negative SNMG Inserts WF B LF Right hand tool shown Designation H HF B LF LH WF MIID(1) DSKNR/L 2525M-12 25.0 25.0 25.0 150.00 31.0 32.00 SNMG 1204 RST 443 T-15/5 SR 10400270-25.5 LCGR-4 SR 14-506 M4X0.7 (1) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMG-PP (220) • SNMG-VL (219) • SNMA (222) LH 45º 45º DSSNR/L 45° Lead Angle R-Clamp HF H Tools Carrying Negative OAL Square Inserts for Longitudinal WF B and Facing Applications LF Right hand tool shown Designation H HF B LF LH WF OAL MIID(2) DSSNR/L 2020K-12 (1) 20.0 20.0 20.0 125.00 38.0 25.00 133.30 SNMG 1204 DSSNR/L 2525M-12 (1) 25.0 25.0 25.0 150.00 39.0 32.00 158.30 SNMG 1204 DSSNR/L 3232P-15 32.0 32.0 32.0 170.00 34.0 40.00 170.00 SNMG 1506 DSSNR/L 3232P-19 32.0 32.0 32.0 170.00 38.0 40.00 170.00 SNMG 1906 (1) Using SNMG.....-EM-M/R inserts requires the use of RST 443R/L SET. (2) Master insert identification For inserts, see pages: SNMG-F3S (219) • SNMG-R3P (217) • SNMG-F3P (216) • SNMG-M3P (216) • SNMM-R3P (223) • SNMG-F3M (218) • SNMG-M3M (218) • SNMG-TF (220) • SNMG-GN (221) • SNMG-NR (222) • SNMM-NR (225) • SNMG-PP (220) • SNMG-R3M (219) • SNMG-VL (219) • SNMG-EM-M/R (221) • SNMM-NM (224) • SNMM-H3P (223) • SNMM-H4P (224) • SNMA (222) Spare Parts Designation DSSNR/L 2020K-12 RST 443 SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DSSNR/L 2525M-12 RST 443 SR 14-506 M4X0.7 LCGR-4 SR 10400270-25.5 T-15/5 DSSNR/L 3232P-15 RST 54 SR 10402265 LCGR-5 SR 10402267 KSP 5 HW 4.0 DSSNR/L 3232P-19 RST 634 SR 10402266 LCGR-6 SR 10402267 KSP 5 HW 4.0 51
