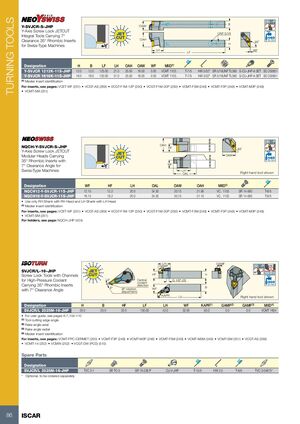

Токарные инструменты Iscar (часть 1) 2026 - страница 88

TURNING TOOLS 50° MAX OAW B Y-SVJCR-S-JHP 93° Y-Axis Screw Lock JETCUT UNF 5/16 Integral Tools Carrying 7° OAH Clearance 35° Rhombic Inserts 93˚ Bar Max H for Swiss-Type Machines LH WF LF Designation H B LF LH OAH OAW WF MIID(1) Y-SVJCR 1212K-11S-JHP 12.0 12.0 125.00 21.0 25.50 16.00 0.00 VCMT 1103.. T-7/5 HW 5/32" SR 5/16UNF TL360 S-CU-JHP-A SET SO 250651 Y-SVJCR 1616K-11S-JHP 16.0 16.0 125.00 21.0 25.50 16.00 0.00 VCMT 1103.. T-7/5 HW 5/32" SR 5/16UNF TL360 S-CU-JHP-A SET SO 250651 (1) Master insert identification For inserts, see pages: VCET-WF (251) • VCGT-AS (269) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-SM (251) 50° MAX OAH NQCH-Y-SVJCR-S-JHP HF 93˚ 93° Y-Axis Screw Lock JETCUT Modular Heads Carrying OAW 35° Rhombic Inserts with Bar Max 7° Clearance Angle for WF Swiss-Type Machines LH OAL Right hand tool shown Designation WF HF LH OAL OAW OAH MIID(1) NQCH12-Y-SVJCR-11S-JHP 12.15 12.2 20.0 34.30 20.15 21.90 VC.. 1103 SR 14-560 T-8/5 NQCH16-Y-SVJCR-11S-JHP 16.15 16.2 20.0 34.30 20.15 21.10 VC.. 1103 SR 14-560 T-8/5 • Use only RH Shank with RH Head and LH Shank with LH Head (1) Master insert identification For inserts, see pages: VCET-WF (251) • VCGT-AS (269) • VCGT-F1M-12P (250) • VCGT-F1M-20P (250) • VCMT-F3M (249) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-SM (251) For holders, see page: NQCH-JHP (424) LH GAMF GAMP 50° 105° MAX SVJCR/L-16-JHP 93° Screw Lock Tools with Channels HF H for High-Pressure Coolant 4° Central G 1/8"-28 coolant Carrying 35° Rhombic Inserts direction B Bar Max 4° (8° rotation WF with 7° Clearance Angle adjustment) KAPR LF Right hand tool shown Designation H B HF LF LH WF KAPR(1) GAMP(2) GAMF(3) MIID(4) SVJCR/L 2525M-16-JHP 25.0 25.0 25.0 150.00 42.0 32.00 93.0 0.0 0.0 VCMT 1604 • For user guide, see pages 6-7,104-110 (1) Tool cutting edge angle (2) Rake angle axial (3) Rake angle radial (4) Master insert identification For inserts, see pages: VCMT-FPC-CERMET (250) • VCMT-F3P (248) • VCMT-M3P (248) • VCMT-F3M (249) • VCMT-M3M (249) • VCMT-SM (251) • VCGT-AS (269) • VCMT-14 (252) • VCMW (252) • VCGT-DW (PCD) (515) Spare Parts Designation SVJCR/L 2525M-16-JHP TVC 3-1 SR TC-3 SR 16-236 P CU-V-JHP T-15/5 HW 2.5 T-8/5 TVC 3-04675* * Optional, to be ordered separately 86 ISCAR
