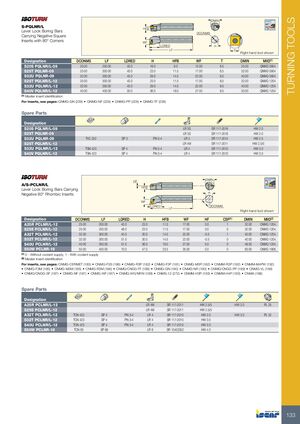

TURNING TOOLS DMIN 95º S-PQLNR/L HFB Lever Lock Boring Bars DCONMS Carrying Negative Square Inserts with 80° Corners WF LDRED H LF T Right hand tool shown Designation DCONMS LF LDRED H HFB WF T DMIN MIID(1) S20S PQLNR/L-09 20.00 250.00 40.0 18.0 9.0 13.00 6.5 25.00 QNMG 0904 S25T PQLNR-09 25.00 300.00 40.0 23.0 11.5 17.00 6.5 32.00 QNMG 0904 S32U PQLNR-09 32.00 350.00 45.0 29.0 14.5 22.00 6.5 40.00 QNMG 0904 S25T PQLNR/L-12 25.00 300.00 40.0 23.0 11.5 17.00 8.5 32.00 QNMG 1204 S32U PQLNR/L-12 32.00 350.00 45.0 29.0 14.5 22.00 8.5 40.00 QNMG 1204 S40V PQLNR/L-12 40.00 400.00 50.0 36.0 18.0 27.00 8.5 50.00 QNMG 1204 (1) Master insert identification For inserts, see pages: QNMG-GN (229) • QNMG-NF (228) • QNMG-PP (228) • QNMG-TF (228) Spare Parts Designation S20S PQLNR/L-09 LR 3S SR 117-2016 HW 2.0 S25T PQLNR-09 LR 3S SR 117-2016 HW 2.0 S32U PQLNR-09 TXC 322 SP 3 PN 3-4 LR 3 SR 117-2014 HW 2.5 S25T PQLNR/L-12 LR 4M SR 117-2011 HW 2.5/5 S32U PQLNR/L-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 S40V PQLNR/L-12 TSN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 HF DMIN A/S-PCLNR/L 95º HFB Lever Lock Boring Bars Carrying Negative 80° Rhombic Inserts H WF LDRED DCONMS LF Right hand tool shown Designation DCONMS LF LDRED H HFB WF HF CSP(1) DMIN MIID(2) A25R PCLNR/L-12 25.00 200.00 40.0 23.0 11.5 17.00 0.0 1 32.00 CNMG 1204.. S25S PCLNR/L-12 25.00 250.00 48.0 23.0 11.5 17.00 0.0 0 32.00 CNMG 1204.. A32T PCLNR/L-12 32.00 300.00 45.0 30.0 14.5 22.00 -0.5 1 40.00 CNMG 1204.. S32T PCLNR/L-12 32.00 300.00 51.0 30.0 14.5 22.00 -0.5 0 40.00 CNMG 1204.. S40U PCLNR/L-12 40.00 350.00 51.0 36.0 18.0 27.00 0.0 0 49.00 CNMG 1204.. S50W PCLNR-19 50.00 450.00 70.0 47.0 23.5 35.00 0.0 0 63.00 CNMG 1906.. (1) 0 - Without coolant supply, 1 - With coolant supply (2) Master insert identification For inserts, see pages: CNMG-CERMET (183) • CNMG-F3S (186) • CNMG-R3P (182) • CNMG-F3P (181) • CNMG-M3P (182) • CNMM-R3P (192) • CNMM-M4PW (192) • CNMG-F3M (185) • CNMG-M3M (185) • CNMG-R3M (186) • CNMG/CNGG-TF (189) • CNMG-GN (190) • CNMG-NR (190) • CNMG/CNGG-PP (189) • CNMG-VL (186) • CNMG/CNGG-SF (187) • CNMG-NF (187) • CNMG-WF (187) • CNMG-WG/NRW (188) • CNMS-12 (272) • CNMM-H3P (193) • CNMM-H4P (193) • CNMA (188) Spare Parts Designation A25R PCLNR/L-12 LR 4M SR 117-2011 HW 2.5/5 HW 2.0 PL 25 S25S PCLNR/L-12 LR 4M SR 117-2011 HW 2.5/5 A32T PCLNR/L-12 TCN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 2.0 HW 3.0 PL 32 S32T PCLNR/L-12 TCN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 S40U PCLNR/L-12 TCN 423 SP 4 PN 3-4 LR 4 SR 117-2010 HW 3.0 S50W PCLNR-19 TCN 63 SP 66 LR 6 SR 10402352 HW 4.0 133
