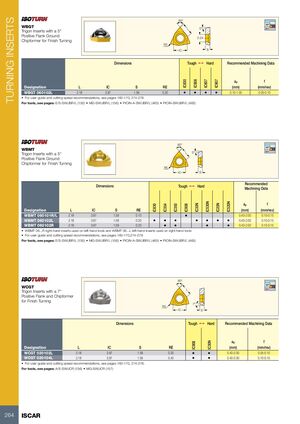

Токарные инструменты Iscar (часть 1) 2026 - страница 266

TURNING INSERTS 80° 93º WBGT L 5° Trigon Inserts with a 5° Positive Flank Ground 2.24 Chipformer for Finish Turning RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC830 IC908 IC807 IC907 Designation L IC S RE (mm) (mm/rev) WBGT 060102L 2.18 3.97 1.59 0.20 • • • • 0.10-1.00 0.05-0.10 • For user guide and cutting speed recommendations, see pages 160-170, 274-278 For tools, see pages: E/S-SWUBR/L (155) • MG-SWUBR/L (156) • PICIN-A-SWUBR/L (465) • PICIN-SWUBR/L (465) 80° 93º WBMT L 5° Trigon Inserts with a 5° Positive Flank Ground Chipformer for Finish Turning RE IC S Recommended Dimensions Tough 1 Hard Machining Data IC530N IC520N ap f IC30N IC20N IC830 IC354 IC350 IC908 Designation L IC S RE (mm) (mm/rev) WBMT 060101R/L 2.18 3.97 1.59 0.10 • 0.40-2.00 0.10-0.15 WBMT 060102L 2.18 3.97 1.59 0.20 • • • • • • • 0.40-2.00 0.10-0.15 WBMT 060102R 2.18 3.97 1.59 0.20 • • • • 0.40-2.00 0.10-0.15 • WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools • For user guide and cutting speed recommendations, see pages 160-170,274-278 For tools, see pages: E/S-SWUBR/L (155) • MG-SWUBR/L (156) • PICIN-A-SWUBR/L (465) • PICIN-SWUBR/L (465) 80° 93º WCGT L Trigon Inserts with a 7° Positive Flank and Chipformer for Finish Turning 7° RE IC S Dimensions Tough 1 Hard Recommended Machining Data ap f IC30N IC908 Designation L IC S RE (mm) (mm/rev) WCGT 020102L 2.18 3.97 1.59 0.20 • • 0.40-2.00 0.05-0.10 WCGT 020104L 2.18 3.97 1.59 0.40 • • 0.40-2.00 0.10-0.15 • For user guide and cutting speed recommendations, see pages 160-170, 274-278. For tools, see pages: A/E-SWUCR (156) • MG-SWUCR (157) 264 ISCAR
