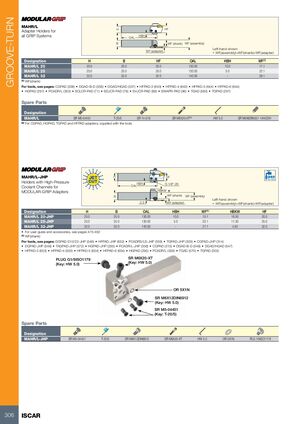

GROOVE-TURN MAHR/L H HF Adapter Holders for all GRIP Systems OAL HBH B WF (shank) WF (assembly) Left-hand shown WF (adapter) • WF(assembly)=WF(shank)+WF(adapter) Designation H B HF OAL HBH WF(1) MAHR/L 20 20.0 20.0 20.0 130.00 10.0 17.1 MAHR/L 25 25.0 25.0 25.0 130.00 5.0 22.1 MAHR/L 32 32.0 32.0 32.0 140.00 - 29.1 (1) WF(shank) For tools, see pages: CGPAD (308) • DGAD-B-D (538) • DGAD/HGAD (537) • HFPAD-3 (643) • HFPAD-4 (643) • HFPAD-5 (644) • HFPAD-6 (644) • HGPAD (291) • PCADR/L (353) • SCLCR-PAD (71) • SDJCR-PAD (78) • SVJCR-PAD (88) • SWAPR-PAD (96) • TGAD (560) • TGPAD (297) Spare Parts Designation MAHR/L SR M5-04451 T-20/5 SR 14-519 SR M6X20-XT(a) HW 5.0 SR M6X6DIN551 14H/22H (a) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools MAHR/L-JHP H HF Bar Max Holders with High-Pressure HBH G 1/8"-28 Coolant Channels for OAL MODULAR-GRIP Adapters HBKW B WF (shank) WF (assembly) Left-hand shown 2.3 WF (adapter) • WF(assembly)=WF(shank)+WF(adapter) Designation H B OAL HBH WF(1) HBKW HF MAHR/L 20-JHP 20.0 20.0 130.00 10.0 15.1 16.50 20.0 MAHR/L 25-JHP 25.0 25.0 130.00 5.0 20.1 11.50 25.0 MAHR/L 32-JHP 32.0 32.0 140.00 - 27.1 4.50 32.0 • For user guide and accessories, see pages 475-492 (1) WF(shank) For tools, see pages: DGPAD-D12/22-JHP (549) • HFPAD-JHP (652) • PCADRS/LS-JHP (359) • TGPAD-JHP (303) • CGPAD-JHP (314) • DGPAD-JHP (548) • TAGPAD-JHP (572) • HGPAD-JHP (295) • PCADR/L-JHP (358) • CGPAD (313) • DGAD-B-D (548) • DGAD/HGAD (547) • HFPAD-3 (653) • HFPAD-4 (653) • HFPAD-5 (654) • HFPAD-6 (654) • HGPAD (295) • PCADR/L (358) • TGAD (570) • TGPAD (302) PLUG G1/8ISO1179 SR M6X20-XT (Key: HW 5.0) (Key: HW 5.0) OR 5X1N SR M6X12DIN6912 (Key: HW 5.0) SR M5-04451 (Key: T-20/5) Spare Parts Designation MAHR/L-JHP SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N PLG 1/8ISO1179 306 ISCAR
