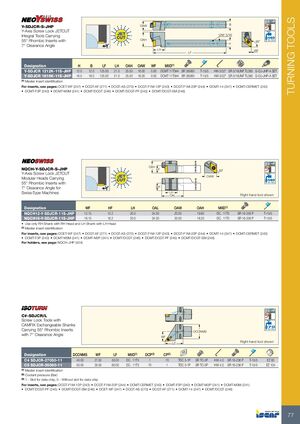

TURNING TOOLS 27° MAX OAW B Y-SDJCR-S-JHP 93° Y-Axis Screw Lock JETCUT Integral Tools Carrying UNF 5/16 55° Rhombic Inserts with OAH Bar Max 93˚ H 7° Clearance Angle LH WF LF Designation H B LF LH OAH OAW WF MIID(1) Y-SDJCR 1212K-11S-JHP 12.0 12.0 125.00 21.0 25.50 16.00 0.00 DCMT 11T3## SR 35080I T-15/5 HW 5/32" SR 5/16UNF TL360 S-CU-JHP-A SET Y-SDJCR 1616K-11S-JHP 16.0 16.0 125.00 21.0 25.50 16.00 0.00 DCMT 11T3## SR 35080I T-15/5 HW 5/32" SR 5/16UNF TL360 S-CU-JHP-A SET (1) Master insert identification For inserts, see pages: DCET-WF (247) • DCGT-AF (271) • DCGT-AS (270) • DCGT-F1M-12P (243) • DCGT-F1M-20P (244) • DCMT-14 (247) • DCMT-CERMET (243) • DCMT-F3P (240) • DCMT-M3M (241) • DCMT/DCGT (246) • DCMT/DCGT-PF (245) • DCMT/DCGT-SM (246) 27° MAX OAH NQCH-Y-SDJCR-S-JHP HF 93˚ 93° Y-Axis Screw Lock JETCUT OAW Modular Heads Carrying 55° Rhombic Inserts with Bar Max 7° Clearance Angle for WF Swiss-Type Machines LH OAL Right hand tool shown Designation WF HF LH OAL OAW OAH MIID(1) NQCH12-Y-SDJCR-11S-JHP 12.15 12.2 20.0 34.30 20.00 19.60 DC.. 11T3 SR 16-236 P T-15/5 NQCH16-Y-SDJCR-11S-JHP 16.15 16.2 20.0 34.30 20.00 18.20 DC.. 11T3 SR 16-236 P T-15/5 • Use only RH Shank with RH Head and LH Shank with LH Head (1) Master insert identification For inserts, see pages: DCET-WF (247) • DCGT-AF (271) • DCGT-AS (270) • DCGT-F1M-12P (243) • DCGT-F1M-20P (244) • DCMT-14 (247) • DCMT-CERMET (243) • DCMT-F3P (240) • DCMT-M3M (241) • DCMT-M3P (241) • DCMT/DCGT (246) • DCMT/DCGT-PF (245) • DCMT/DCGT-SM (246) For holders, see page: NQCH-JHP (424) 27° MAX C#-SDJCR/L 93° Screw Lock Tools with CAMFIX Exchangeable Shanks 70 Carrying 55° Rhombic Inserts DCONMS Bar Max with 7° Clearance Angle WF LF Right hand tool shown Designation DCONMS WF LF MIID(1) DCP(3) CP(2) C4 SDJCR-27050-11 40.00 27.00 50.00 DC.. 11T3 1 70 TDC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 EZ 83 C5 SDJCR-35060-11 50.00 35.00 60.00 DC.. 11T3 70 1 TDC 3-1P SR TC-3P HW 4.0 SR 16-236 P T-15/5 EZ 104 (1) Master insert identification (2) Coolant pressure (Bar) (3) 1 - Slot for data chip, 0 - Without slot for data chip For inserts, see pages: DCGT-F1M-12P (243) • DCGT-F1M-20P (244) • DCMT-CERMET (243) • DCMT-F3P (240) • DCMT-M3P (241) • DCMT-M3M (241) • DCMT/DCGT-PF (245) • DCMT/DCGT-SM (246) • DCET-WF (247) • DCGT-AS (270) • DCGT-AF (271) • DCMT-14 (247) • DCMT/DCGT (246) 77
