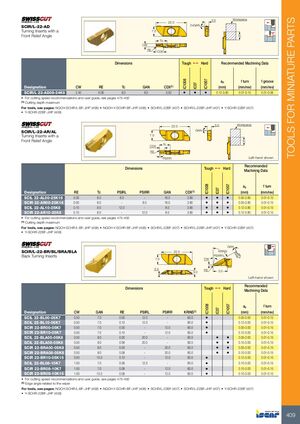

TOOLS FOR MINIATURE PARTS 3.0 Workpiece 22.0 2xGAN SCIR/L-22-AD Turning Inserts with a 7.0 Front Relief Angle Tc Tc CW RE CDX Dimensions Tough 1 Hard Recommended Machining Data ap f turn f groove IC1008 IC1007 IC07 Designation CW RE Tc GAN CDX(1) (mm) (mm/rev) (mm/rev) SCIR/L 22-AD08-24K8 2.40 0.08 8.0 8.0 5.50 • • • 0.12-3.80 0.01-0.15 0.01-0.06 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting depth maximum For tools, see pages: NQCH-SCHR/L-BF-JHP (408) • NQCH-Y-SCHR-BF-JHP (408) • SCHR/L-22BF (407) • SCHR/L-22BF-JHP (407) • Y-SCHR-22BF (407) • Y-SCHR-22BF-JHP (408) 3.0 Workpiece 22.0 GAN SCIR/L-22-AR/AL Turning Inserts with a 7.0 Front Relief Angle Tc Tc CDX RE PSIRR Left-hand shown Recommended Dimensions Tough 1 Hard Machining Data ap f turn IC1008 IC1007 IC07 Designation RE Tc PSIRL PSIRR GAN CDX(1) (mm) (mm/rev) SCIL 22-AL00-25K16 0.00 8.0 8.0 - 16.0 3.80 • • • 0.05-3.80 0.01-0.15 SCIR 22-AR00-25K16 0.00 8.0 - 8.0 16.0 3.80 • • • 0.05-3.80 0.01-0.15 SCIL 22-AL10-25K8 0.10 8.0 12.0 - 8.0 3.80 • • • 0.12-3.80 0.01-0.15 SCIR 22-AR10-25K8 0.10 8.0 - 12.0 8.0 3.80 • • • 0.12-3.80 0.01-0.15 • For cutting speed recommendations and user guide, see pages 475-492 (1) Cutting depth maximum For tools, see pages: NQCH-SCHR/L-BF-JHP (408) • NQCH-Y-SCHR-BF-JHP (408) • SCHR/L-22BF (407) • SCHR/L-22BF-JHP (407) • Y-SCHR-22BF (407) • Y-SCHR-22BF-JHP (408) GAN SCIR/L-22-BR/BL/BRA/BLA 22.0 KRINS Back Turning Inserts PSIRR\L 7.0 CW 0.5 RE 3.0 5.0 Left-hand shown Recommended Dimensions Tough 1 Hard Machining Data ap f turn IC1008 IC1007 IC07 Designation CW GAN RE PSIRL PSIRR KRINS(1) (mm) (mm/rev) SCIL 22-BL00-05K7 0.50 7.0 0.00 12.0 - 60.0 • 0.05-3.00 0.01-0.15 SCIL 22-BL10-05K7 0.50 7.0 0.10 12.0 - 60.0 • 0.12-3.00 0.01-0.15 SCIR 22-BR00-05K7 0.50 7.0 0.00 - 12.0 60.0 • 0.05-3.00 0.01-0.15 SCIR 22-BR10-05K7 0.50 7.0 0.10 - 12.0 60.0 • 0.12-3.00 0.01-0.15 SCIL 22-BLA00-05K8 0.50 8.0 0.00 20.0 - 60.0 • • 0.05-3.00 0.01-0.15 SCIL 22-BLA08-05K8 0.50 8.0 0.08 20.0 - 60.0 • • 0.10-3.00 0.01-0.15 SCIR 22-BRA00-05K8 0.50 8.0 0.00 - 20.0 60.0 • • 0.05-3.00 0.01-0.15 SCIR 22-BRA08-05K8 0.50 8.0 0.08 - 20.0 60.0 • • 0.10-3.00 0.01-0.15 SCIR 22-BR10-05K15 0.50 15.0 0.10 - 12.0 60.0 • 0.12-3.00 0.01-0.15 SCIL 22-BL08-10K7 1.00 7.0 0.08 12.0 - 60.0 • 0.10-3.00 0.01-0.15 SCIR 22-BR08-10K7 1.00 7.0 0.08 - 12.0 60.0 • 0.10-3.00 0.01-0.15 SCIR 22-BR08-10K15 1.00 15.0 0.08 - 12.0 60.0 • 0.10-3.00 0.01-0.15 • For cutting speed recommendations and user guide, see pages 475-492 (1) Edge angle related to the wiper For tools, see pages: NQCH-SCHR/L-BF-JHP (408) • NQCH-Y-SCHR-BF-JHP (408) • SCHR/L-22BF (407) • SCHR/L-22BF-JHP (407) • Y-SCHR-22BF (407) • Y-SCHR-22BF-JHP (408) 409
