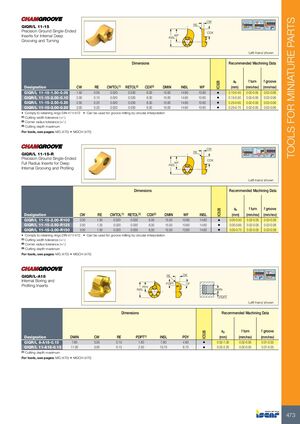

TOOLS FOR MINIATURE PARTS CW RE GIQR/L 11-15 Precision Ground Single-Ended CDX Inserts for Internal Deep WF INSL Grooving and Turning Left-hand shown Dimensions Recommended Machining Data ap f turn f groove IC528 Designation CW RE CWTOL(1) RETOL(2) CDX(3) DMIN INSL WF (mm) (mm/rev) (mm/rev) GIQR/L 11-15-1.50-0.05 1.50 0.05 0.020 0.030 6.30 15.00 14.60 10.60 • 0.10-0.40 0.02-0.05 0.02-0.06 GIQR/L 11-15-2.00-0.10 2.00 0.10 0.020 0.030 6.30 15.00 14.60 10.60 • 0.15-0.50 0.02-0.05 0.02-0.06 GIQR/L 11-15-2.50-0.20 2.50 0.20 0.020 0.030 6.30 15.00 14.60 10.60 • 0.25-0.65 0.02-0.05 0.02-0.06 GIQR/L 11-15-3.00-0.20 3.00 0.20 0.020 0.030 6.30 15.00 14.60 10.60 • 0.25-0.75 0.02-0.05 0.02-0.06 • Comply to retaining rings DIN 471/472 • Can be used for groove milling by circular interpolation (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: MG (470) • MGCH (470) CW RE GIQR/L 11-15-R Precision Ground Single-Ended CDX Full Radius Inserts for Deep WF INSL Internal Grooving and Profiling Left-hand shown Dimensions Recommended Machining Data ap f turn f groove IC528 Designation CW RE CWTOL(1) RETOL(2) CDX(3) DMIN WF INSL (mm) (mm/rev) (mm/rev) GIQR/L 11-15-2.00-R100 2.00 1.00 0.020 0.030 6.30 15.00 10.60 14.60 • 0.00-0.50 0.02-0.05 0.02-0.06 GIQR/L 11-15-2.50-R125 2.50 1.25 0.020 0.030 6.30 15.00 10.60 14.60 • 0.00-0.65 0.02-0.05 0.02-0.06 GIQR/L 11-15-3.00-R150 3.00 1.50 0.020 0.030 6.30 15.00 10.60 14.60 • 0.00-0.75 0.02-0.05 0.02-0.06 • Comply to retaining rings DIN 471/472 • Can be used for groove milling by circular interpolation (1) Cutting width tolerance (+/-) (2) Corner radius tolerance (+/-) (3) Cutting depth maximum For tools, see pages: MG (470) • MGCH (470) RE CW GIQR/L-A18 Internal Boring and PDPT 18° Profiling Inserts PDY INSL DMIN PDPT Left-hand shown Dimensions Recommended Machining Data ap f turn f groove IC528 Designation DMIN CW RE PDPT(1) INSL PDY (mm) (mm/rev) (mm/rev) GIQR/L 8-A18-0.15 7.80 3.00 0.15 1.60 7.60 4.60 • 0.02-1.30 0.02-0.05 0.01-0.03 GIQR/L 11-A18-0.15 11.00 3.00 0.15 2.50 10.70 6.70 • 0.02-2.20 0.02-0.05 0.01-0.03 (1) Cutting depth maximum For tools, see pages: MG (470) • MGCH (470) 473
